10-6823-90 - ARIES

Description: Aries Electronics Vertisocket 2.54mm Pitch Right Angle 10 Way, Through Hole Closed Frame IC Dip Socket, 1.5A

Download 10-6823-90 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
10-6823-90 - ARIES - PCB symbol
click to zoom
PCB Footprints

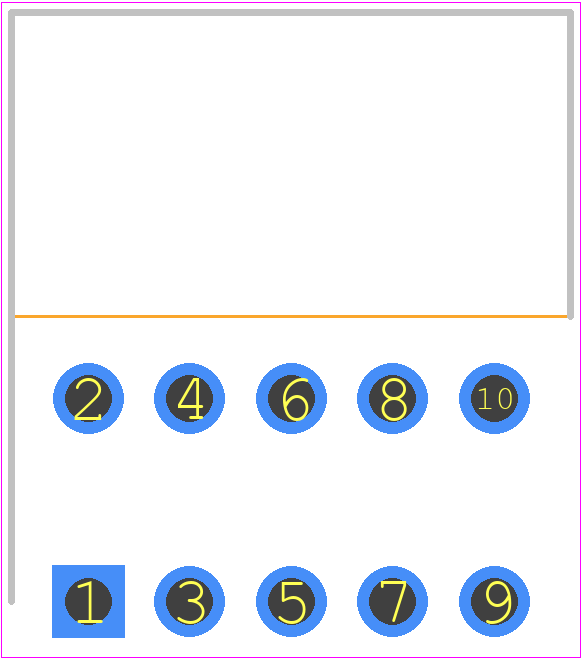

10-6823-90 - ARIES PCB footprint - Header, Shrouded - Right Angle PTH Box - Header, Shrouded - Right Angle PTH Box - 10-6823-90
click to zoom
3D Models
10-6823-90 - ARIES - 3D model - Header, Shrouded - Right Angle PTH Box - 10-6823-90
click to zoom

10-6823-90 Details

  • Manufacturer Part Number:

    10-6823-90

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Aries Electronics Inc

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Body Breadth:

    0.7 inch

  • Body Depth:

    0.68 inch

  • Body Length:

    0.55 inch

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Material:

    NOT SPECIFIED

  • Contact Style:

    SQ PIN-SKT

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP10

  • Housing Material:

    NYLON46

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    RIGHT ANGLE

  • Number of Contacts:

    10

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

10-6823-90 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
  • Yes, the 10-6823-90 is designed to withstand vibrations up to 10G peak acceleration, making it suitable for use in high-vibration environments.
  • Yes, the 10-6823-90 is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The operating temperature range for the 10-6823-90 is -40°C to +125°C, making it suitable for use in a wide range of applications.
  • The 10-6823-90 has a moisture-resistant design, but it's not fully waterproof. It can withstand occasional exposure to humidity or moisture, but prolonged exposure may affect its performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

10-6823-90 Overview

Use the download button to access the 10-6823-90 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10-68, or try a keyword search, such as Sockets and Chip Carriers
