10-810-90C - ARIES

Description: ARIES - 10-810-90C - IC & Component Socket, 10 Contacts, DIP, 2.54 mm, 7.62 mm, Beryllium Copper

Download 10-810-90C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
10-810-90C - ARIES - PCB symbol
click to zoom
PCB Footprints

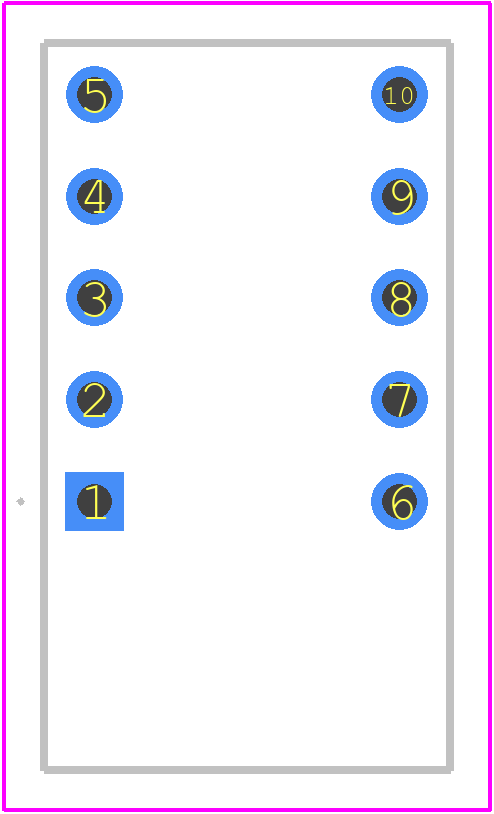

10-810-90C - ARIES PCB footprint - Other - Other - 10-810-90C-2
click to zoom
3D Models
10-810-90C - ARIES - 3D model - Other - 10-810-90C-2
click to zoom

10-810-90C Details

  • Manufacturer Part Number:

    10-810-90C

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Aries Electronics Inc

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Contact Finish Termination:

    Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP10

  • Housing Material:

    NYLON46

  • JESD-609 Code:

    e0

  • Number of Contacts:

    10
