10-84-4092 - Molex

10-84-4092 Details

• Manufacturer Part Number:

  10-84-4092

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  India, Mainland China, USA

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  17 Weeks

• Manufacturer:

  Molex

• YTEOL:

  8

• Additional Feature:

  RATED CURRENT(POWER):20A

• Body Breadth:

  0.8 inch

• Body Depth:

  0.55 inch

• Body Length:

  0.8 inch

• Connector Type:

  RECTANGULAR POWER CONNECTOR

• Contact Arrangement:

  S0P9

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  Tin (Sn)

• Contact Gender:

  FEMALE

• Contact Material:

  PHOSPHOR BRONZE

• Contact Resistance:

  3.5 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  500VAC V

• Durability:

  50 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  6.672 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  POLYAMIDE66

• JESD-609 Code:

  e3

• MIL Conformance:

  NO

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• Plating Thickness:

  138u inch

• Reference Standard:

  CSA; UL

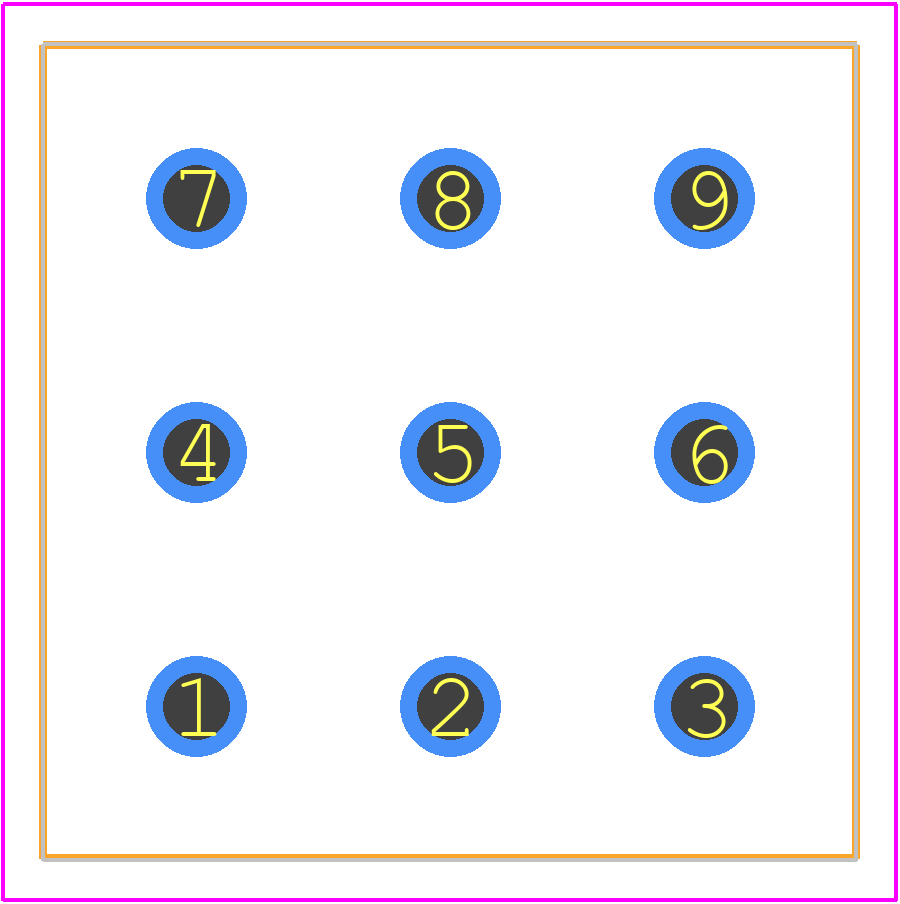

• Terminal Length:

  0.17 inch

• Terminal Pitch:

  6.35 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  9

• UL Flammability Code:

  94V-2
