100-964-432 - PANCON CONNECTORS

Description: HI-Con socket; straight; type C; solder pin 4.6mm; 64 contacts; class 2, 2.54mm pitch

Download 100-964-432 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
100-964-432 - PANCON CONNECTORS - PCB symbol
click to zoom
PCB Footprints

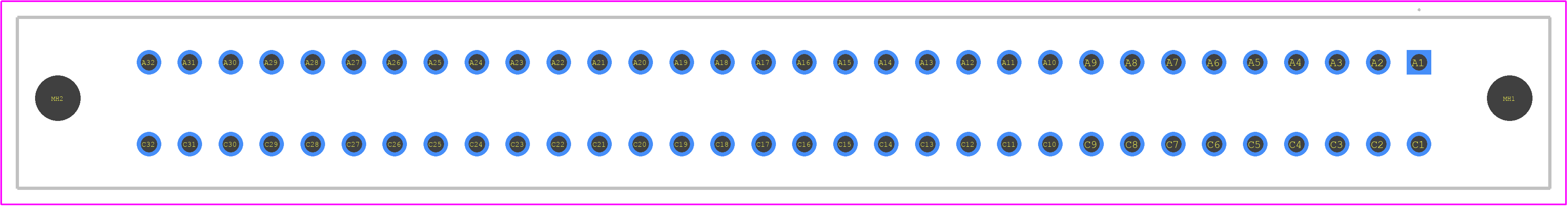

100-964-432 - PANCON CONNECTORS PCB footprint - Other - Other - 100-964-432-2
click to zoom
3D Models
100-964-432 - PANCON CONNECTORS - 3D model - Other - 100-964-432-2
click to zoom

100-964-432 Details

  • Manufacturer Part Number:

    100-964-432

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Pancon Corporation

  • YTEOL:

    8

  • Body Breadth:

    0.417 inch

  • Body Depth:

    0.456 inch

  • Body Length:

    3.74 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    PHOSPHOR BRONZE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Name of Rows Loaded:

    A,B,C

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.08 mm

  • Terminal Length:

    0.181 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    64

100-964-432 Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the 100-964-432 connector is 0.5-1.5 Nm (5-13 in-lbs).
  • Yes, the 100-964-432 connector is suitable for outdoor use, but it's recommended to use a protective coating or sealant to ensure IP67 rating.
  • Yes, the 100-964-432 connector is designed to withstand high-vibration environments, but it's recommended to use additional locking mechanisms or potting compounds for added security.
  • The maximum operating temperature for the 100-964-432 connector is 125°C (257°F), but it's recommended to derate the connector's performance at temperatures above 100°C (212°F).
  • The 100-964-432 connector is resistant to most industrial chemicals, but it's recommended to consult the datasheet or contact Pancon Corporation for specific chemical compatibility information.
