1000640000 - Weidmüller

Description: PCB connector (board connection), 160 V, 15 A, Pitch in mm: 3.50, Number of poles: 8, THT/THR solder connection, Box

Download 1000640000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints

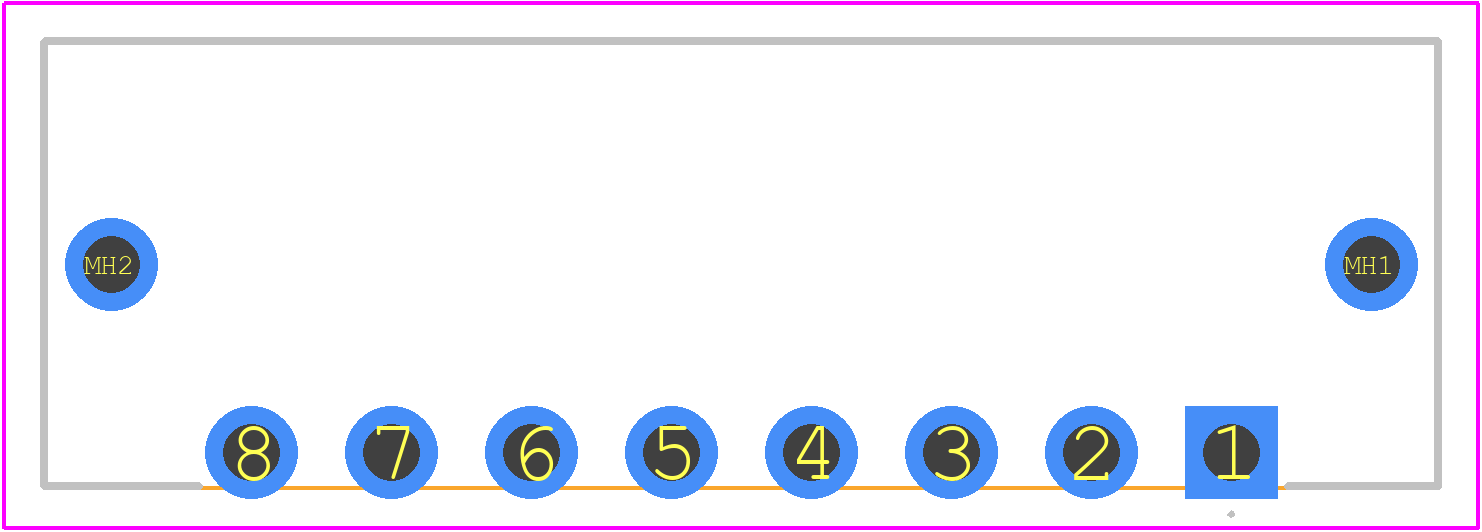

PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
3D Models
1000640000 - Weidmüller  - 3D model
click to zoom
Note! To download footprints and symbols, use the build and request forms below

Build

Launch Build Wizard
Build Wizard not available for this package category!

Request (48 hours)

1000640000 Details

  • Manufacturer Part Number:

    1000640000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0; GLASS FILLED LIQUID CRYSTAL POLYMER

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Packing Method:

    BOX

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; IEC; UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

1000640000 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1000640000 is -40°C to 85°C, according to the manufacturer's specifications.
  • Yes, the 1000640000 is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The maximum current rating of the 1000640000 is 16 A per pin, according to the datasheet.
  • Yes, the 1000640000 is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
  • Yes, the 1000640000 is designed to be compatible with other Weidmüller products, including their range of connectors and interfaces.

Trust Checks

No trust score is available for this model.
Trust Score Unavailable
Sponsored

1000640000 Overview

Use the download button to access the 1000640000 3D model. You can still request or build the schematic symbol and PCB footprint by using the respective build or request forms on this page.
To find more CAD model downloads similar to this part, try a partial part number search, like 10006, or try a keyword search, such as Terminals and Terminal Blocks
