For optimal performance, it's recommended to follow a 4-layer PCB stackup with a dedicated ground plane, and to use thermal vias and a heat sink to dissipate heat. iNRCORE LLC provides a reference design and thermal management guidelines upon request.
To ensure reliable operation in high-vibration environments, it's recommended to follow iNRCORE LLC's guidelines for mounting and securing the device. Additionally, consider using a vibration-dampening material and ensuring the PCB is properly secured to the chassis.
While the datasheet specifies an operating temperature range of -40°C to 85°C, iNRCORE LLC recommends derating the device for extended operation above 70°C to ensure long-term reliability.
Yes, the 1000B-5002X is designed to support redundant and fault-tolerant system designs. iNRCORE LLC provides guidance on implementing redundant configurations and fault detection mechanisms upon request.
iNRCORE LLC recommends following standard ESD protection procedures, including the use of ESD-safe materials, wrist straps, and mats. Additionally, handle the device by the package only, avoiding direct contact with the pins or die.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1000B-5002X Overview

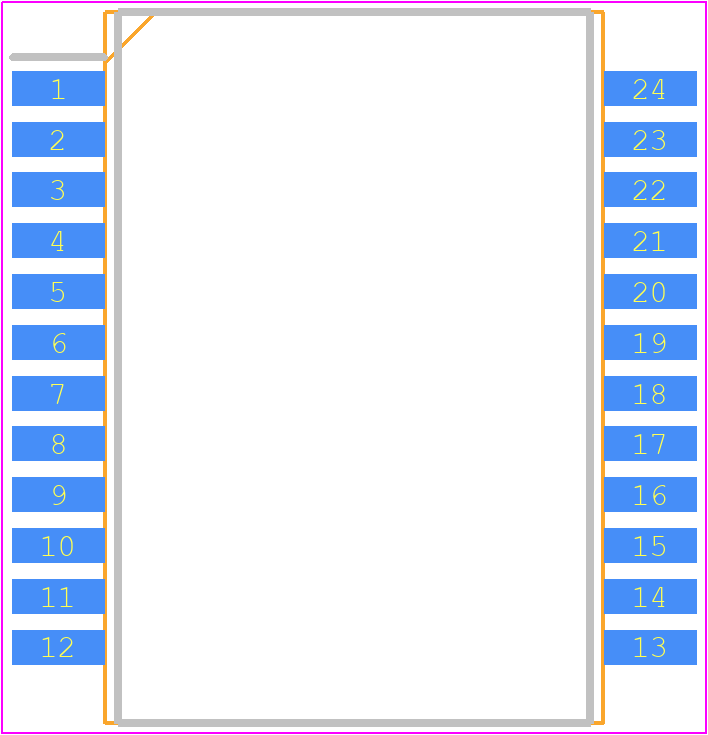

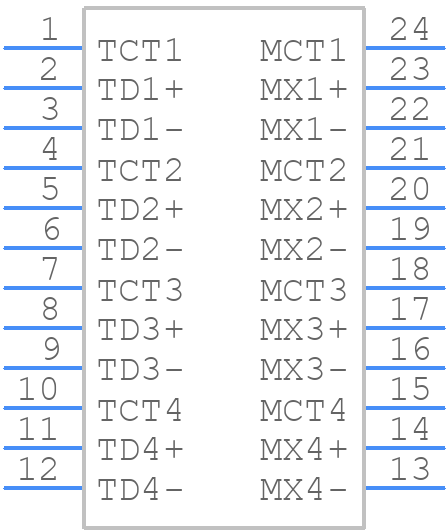

Use the download button to access the 1000B-5002X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1000B,
or try a keyword search, such as Pulse/Datacom Transformers
