For optimal performance, it's recommended to follow a 4-layer PCB stackup with a dedicated ground plane, and to use thermal vias and a heat sink to dissipate heat. iNRCORE LLC provides a reference design and thermal management guidelines upon request.
To ensure reliable operation in high-vibration environments, it's recommended to follow iNRCORE LLC's guidelines for mounting and securing the device, and to use a vibration-dampening material such as a silicone adhesive or a vibration-absorbing mount.
The 1000B-5006X is rated for operation from -40°C to 125°C, but derating may be required for high-power applications or extreme environmental conditions. Consult with iNRCORE LLC's application engineers for specific guidance.
Yes, the 1000B-5006X can be used in a hermetically sealed package, but it requires special handling and processing to ensure the device is not damaged during the sealing process. Consult with iNRCORE LLC's application engineers for specific guidance.
The 1000B-5006X is sensitive to electrostatic discharge (ESD). It's recommended to follow standard ESD handling procedures, including the use of ESD-safe materials, wrist straps, and mats, and to handle the device in a static-controlled environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1000B-5006X Overview

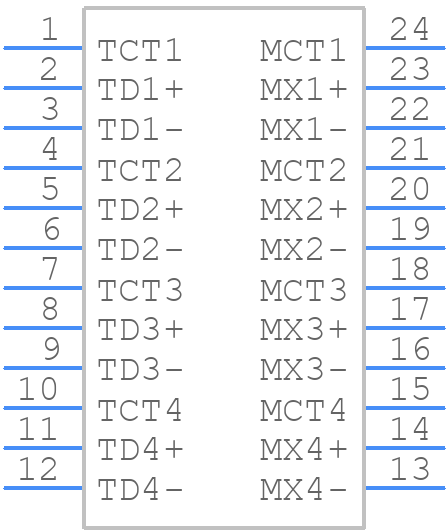

Use the download button to access the 1000B-5006X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1000B,
or try a keyword search, such as Pulse/Datacom Transformers
