1001780000 - Weidmüller

Description: PCB terminal, 320 V, 32.5 A, Pitch in mm: 5.00, 6 mm², Number of poles: 10, Clamping yoke connection, THT solder connection, 90°, Box

Download 1001780000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1001780000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

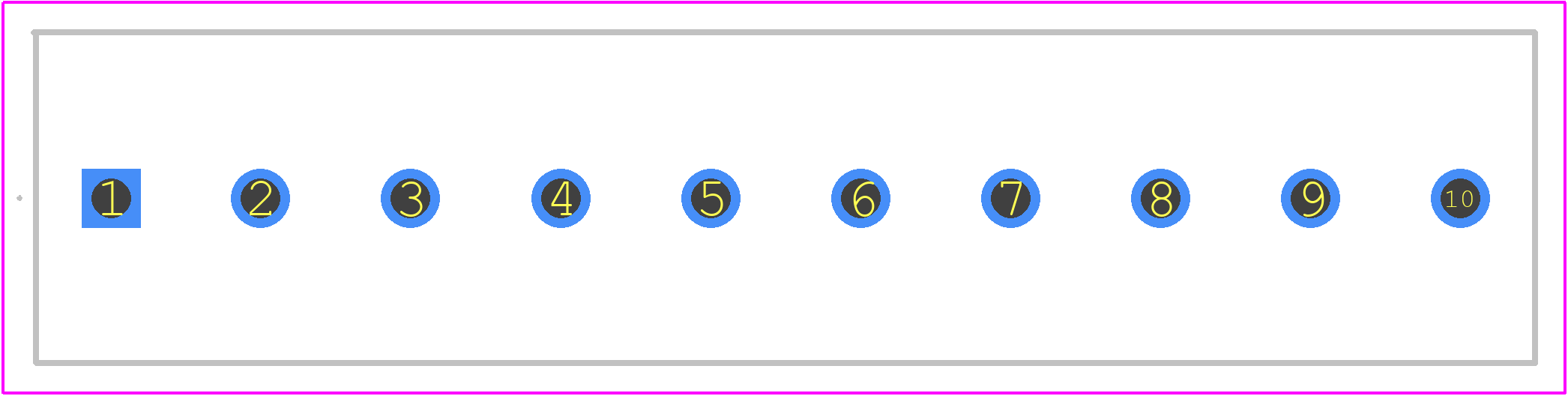

1001780000 - Weidmüller PCB footprint - Other - Other - 1001780000-1
click to zoom
3D Models
1001780000 - Weidmüller - 3D model - Other - 1001780000-1
click to zoom

1001780000 Details

  • Manufacturer Part Number:

    1001780000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • Additional Feature:

    STANDARD: UL 94V-0

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    6 mm2

  • Wire Gauge:

    12 AWG

1001780000 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1001780000 is -40°C to 85°C, as specified by Weidmüller.
  • Yes, the 1001780000 is designed for outdoor use and has a IP67 rating, which means it can withstand harsh environmental conditions, including rain and dust.
  • The maximum cable diameter that can be connected to the 1001780000 is 12 mm, as specified by Weidmüller.
  • Yes, the 1001780000 is designed to be compatible with other Weidmüller products, including their range of connectors and interfaces.
  • The 1001780000 is typically used in industrial automation, process control, and building automation applications, where reliable and secure connections are required.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1001780000 Overview

Use the download button to access the 1001780000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10017, or try a keyword search, such as Terminals and Terminal Blocks
