1003-004-01010 - CNC Tech

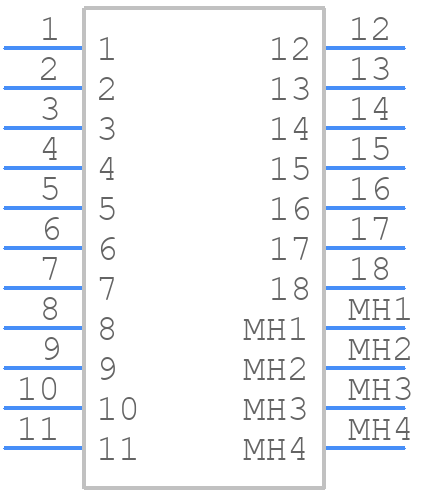

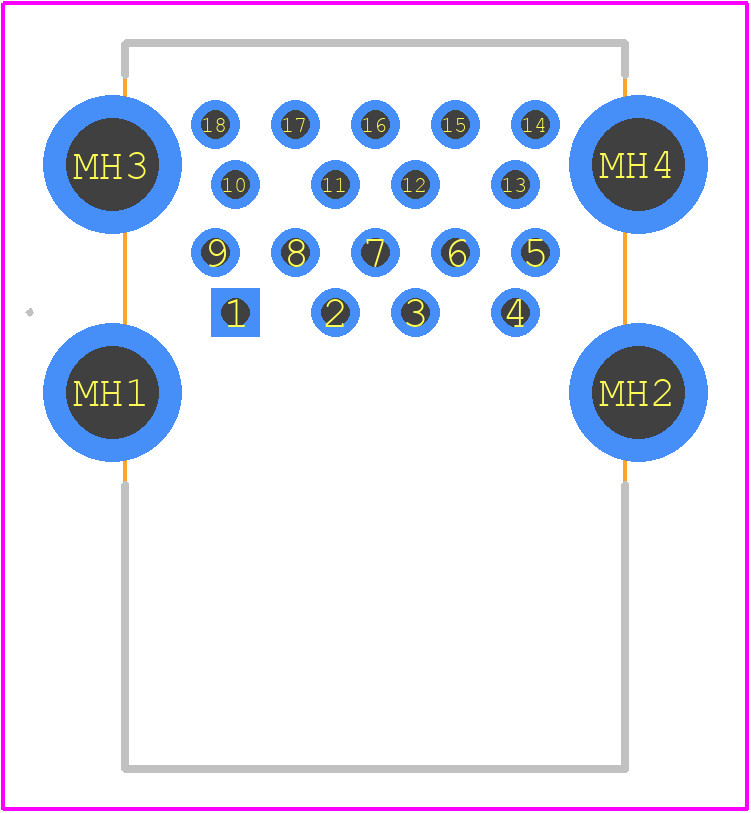

1003-004-01010 Details

• Manufacturer Part Number:

  1003-004-01010

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Contact Manufacturer

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  CnC Tech LLC

• Board Mounting Option:

  RETENTION CLIPS

• Body Breadth:

  0.638 inch

• Body Depth:

  0.687 inch

• Body Length:

  0.571 inch

• Connector Type:

  USB CONNECTOR

• Contact Gender:

  FEMALE AND FEMALE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  50 mΩ

• Contact Style:

  USB 3.0 A

• Dielectric Withstanding Voltage:

  100VAC V

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  BLUE

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Option 2:

  MOUNTING FLANGE

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of PCB Rows:

  2+2

• Number of Ports:

  2

• Number of Rows Loaded:

  2+2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  1.5/1.7 mm

• Plating Thickness:

  15u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  1.5 A

• Reference Standard:

  UL

• Shell Finish:

  NICKEL

• Shell Material:

  BRASS

• Terminal Length:

  0.102 inch

• Terminal Pitch:

  2 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  18

• UL Flammability Code:

  94V-0
