1003P1T2B2M2RE - E-Switch

Description: TOGGLE, 0.4VA, 20VAC/VDC 3PDT, On-On Through Hole

Download 1003P1T2B2M2RE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 1003P1T2B2M2RE model

Email notifications will be applied after download.

Send part feedback

Symbol

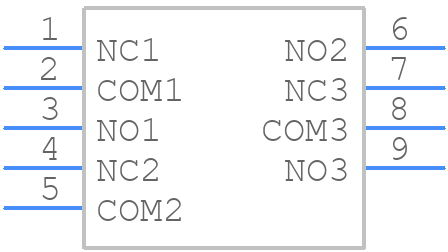

1003P1T2B2M2RE - E-Switch - PCB symbol

PCB Footprints

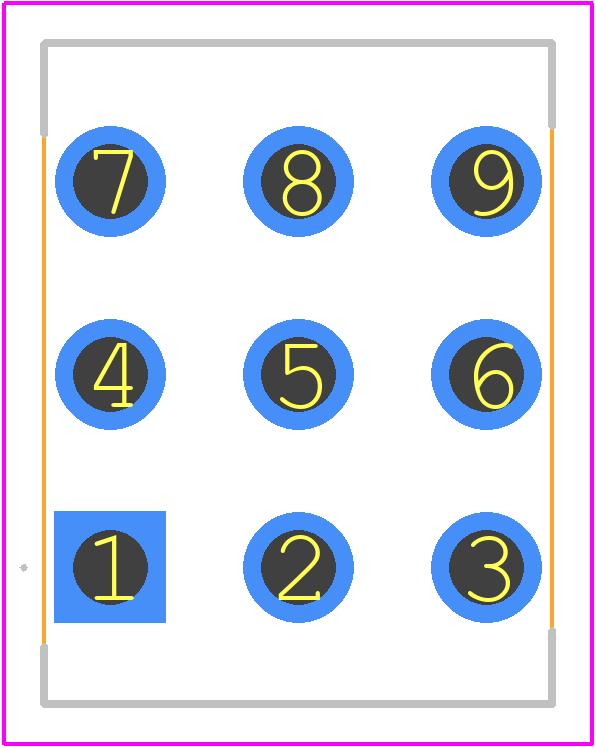

1003P1T2B2M2RE - E-Switch PCB footprint - Other - Other - 1003P1T2B2M2RE-1

3D Models

1003P1T2B2M2RE - E-Switch - 3D model - Other - 1003P1T2B2M2RE-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1003P1T2B2M2RE
Part Number 1003P1T2B2M2RE
Manufacturer E-Switch
Pin Count 9
Part Category Switch
Package Category Other
Footprint Name Other - 1003P1T2B2M2RE-1
Released Date Jan 3, 2025
Last Modified Date Mar 12, 2025 8:50 AM UTC
Pinout / Pin List Click Here (Member Only)

1003P1T2B2M2RE Details

Manufacturer Part Number:
1003P1T2B2M2RE
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
Manufacturer:
E-Switch Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

1003P1T2B2M2RE Overview

Use the download button to access the 1003P1T2B2M2RE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 1003P, or try a keyword search, such as Toggle Switches
