1003P3T1B1M53QE - E-Switch

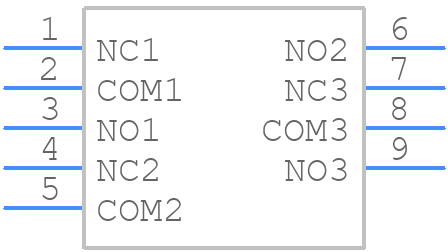

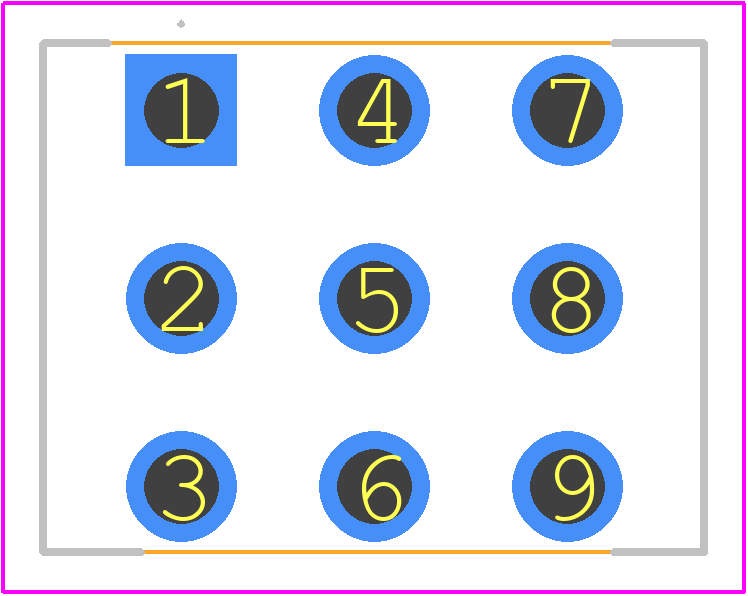

1003P3T1B1M53QE Details

• Manufacturer Part Number:

  1003P3T1B1M53QE

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  E-Switch Inc

• YTEOL:

  9.2

• Actuator Finish:

  CHROME

• Actuator Length:

  0.41 inch

• Actuator Material:

  BRASS

• Actuator Type:

  STANDARD TOGGLE

• Body Breadth:

  12.7 mm

• Body Height:

  10.541 mm

• Body Length or Diameter:

  16.51 mm

• Bushing Diameter:

  0.25 inch

• Bushing Length:

  0.35 inch

• Bushing Type:

  1/4-40

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  2A@250VAC

• Contact Current(AC)-Max:

  2 A

• Contact Current(DC)-Max:

  5 A

• Contact (DC) Max Rating R Load:

  5A@28VDC

• Contact Function:

  ON-OFF-ON

• Contact Resistance:

  0.01 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  1000VAC V

• Electrical Life:

  50000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  SILVER

• Housing Material:

  STAINLESS STEEL

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  DIALLYL PHTHALATE

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• Sealing:

  EPOXY

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  3PDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Length:

  0.354 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  WIRE WRAP
