- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 1004795
- Part Number 1004795
- Manufacturer Kyocera AVX
- Pin Count 9
- Part Category Antenna
- Package Category Other
- Footprint Name Other - 1004795-3
- Released Date Oct 14, 2020
- Last Modified Date Jul 8, 2025 8:30 AM UTC
- Pinout / Pin List Click Here (Member Only)
1004795 Details
-
Manufacturer Part Number:
1004795
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Manufacturer:
Kyocera AVX Components
-
YTEOL:
6
-
Additional Feature:
IT CAN ALSO OPERATED AT 1710-2200 MHZ AND 2500-2700 MHZ
-
Application:
CELLULAR/IOT/LORA/LPWA/LTE/RPMA/SIGFOX
-
Characteristic Impedance:
50 Ω
-
Construction:
COMPONENT
-
Mounting Feature:
SURFACE MOUNT
-
Number of Terminals:
8
1004795 Frequently Asked Questions (FAQs)
-
The recommended land pattern for the 1004795 component can be found in the Kyocera AVX Components' application note or by contacting their technical support team.
-
Handle the component by the edges, avoid touching the pads or components, and use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
-
The maximum operating temperature range for the 1004795 component is typically -40°C to 125°C, but it's recommended to check the datasheet or consult with Kyocera AVX Components for specific temperature ratings.
-
The 1004795 component is designed to withstand certain levels of vibration, but it's recommended to consult with Kyocera AVX Components or perform vibration testing to ensure the component meets the specific application requirements.
-
Store the 1004795 component in its original packaging, in a dry, cool place, away from direct sunlight and moisture, and follow the storage guidelines provided by Kyocera AVX Components.
Trust Checks
Expert Contribution
System Verified
Community Approved
1004795 Overview

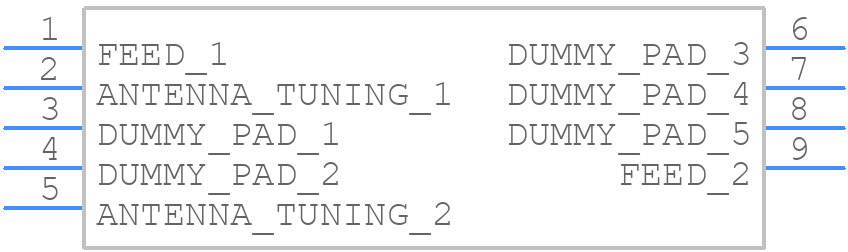

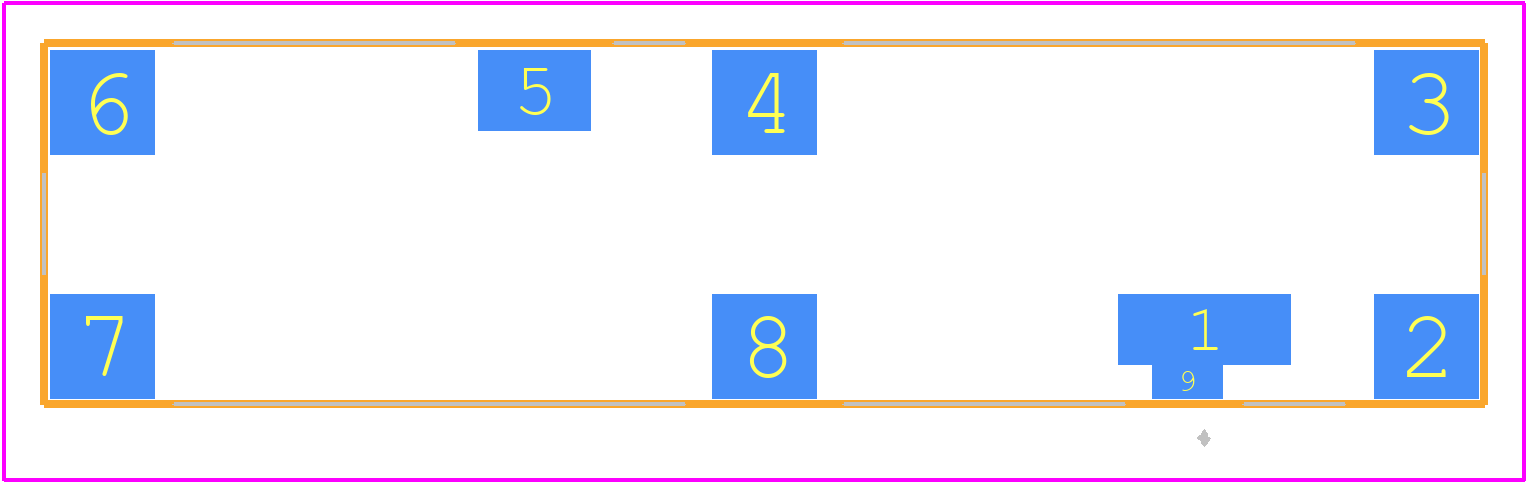

Use the download button to access the 1004795 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10047,
or try a keyword search, such as RF/Microwave Antennas
About Kyocera AVX
Kyocera AVX is a global leader in the design, manufacture, and supply of electronic components, including capacitors, resistors, filters, connectors, and advanced ceramic products. The company was formed as a result of Kyocera Corporation's acquisition of AVX Corporation, combining Kyocera's expertise in ceramic technologies with AVX's strength in passive electronic components. This merger has allowed Kyocera AVX to offer a broad and diversified product portfolio, serving various industries.
