1004P1T1B1M2QEH - E-Switch

Description: TOGGLE, 5A, 120VAC/28VDC 4PDT, On-On Panel Mount, Through Hole

Download 1004P1T1B1M2QEH Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 1004P1T1B1M2QEH model

Email notifications will be applied after download.

Send part feedback

Symbol

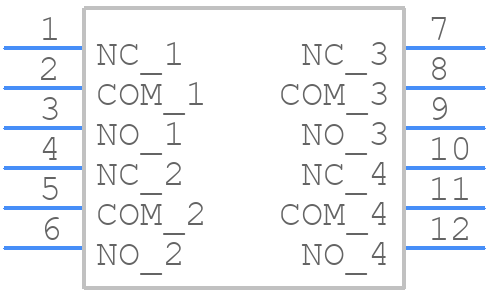

1004P1T1B1M2QEH - E-Switch - PCB symbol

PCB Footprints

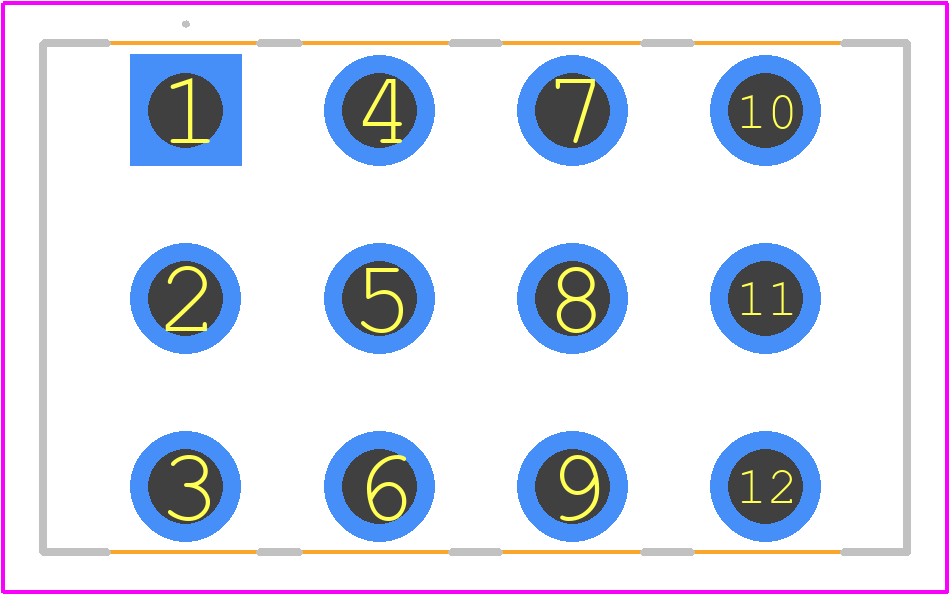

1004P1T1B1M2QEH - E-Switch PCB footprint - Other - Other - 1004P1T1B1M2QEH-1

3D Models

1004P1T1B1M2QEH - E-Switch - 3D model - Other - 1004P1T1B1M2QEH-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1004P1T1B1M2QEH
Part Number 1004P1T1B1M2QEH
Manufacturer E-Switch
Pin Count 12
Part Category Switch
Package Category Other
Footprint Name Other - 1004P1T1B1M2QEH-1
Released Date Jul 1, 2023
Last Modified Date Dec 31, 2024 12:37 PM UTC
Pinout / Pin List Click Here (Member Only)

1004P1T1B1M2QEH Details
