1004P1T1B9M7QE - E-Switch

Description: TOGGLE, 5A, 120VAC/28VDC 4PDT, On-On Panel Mount, Through Hole, Right Angle, Vertical

Download 1004P1T1B9M7QE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

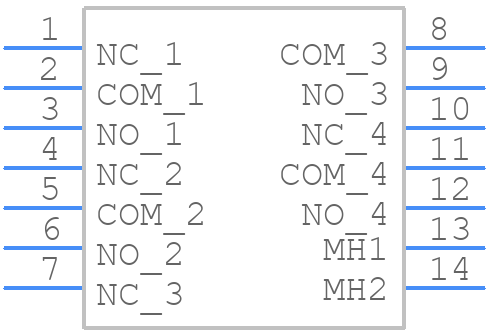

1004P1T1B9M7QE - E-Switch - PCB symbol
click to zoom
PCB Footprints

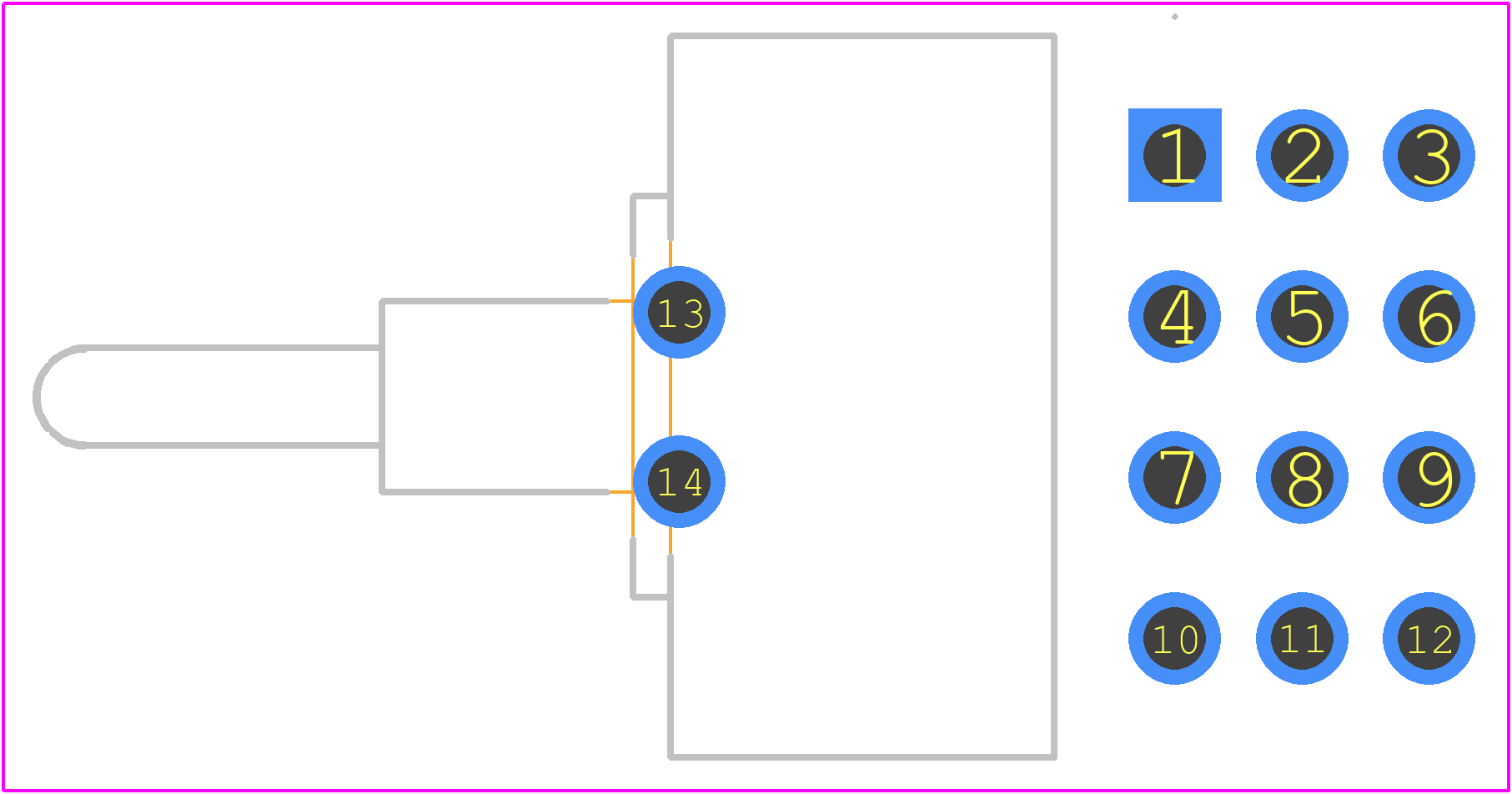

1004P1T1B9M7QE - E-Switch PCB footprint - Other - Other - 1004P1T1B9M7QE-1
click to zoom
3D Models
1004P1T1B9M7QE - E-Switch - 3D model - Other - 1004P1T1B9M7QE-1
click to zoom

1004P1T1B9M7QE Details

  • Manufacturer Part Number:

    1004P1T1B9M7QE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    E-Switch Inc

  • YTEOL:

    7.9

  • Switch Type:

    TOGGLE SWITCH

1004P1T1B9M7QE Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1004P1T1B9M7QE switch is -40°C to 85°C.
  • Yes, the 1004P1T1B9M7QE switch is designed for high-reliability applications and meets the requirements of MIL-PRF-39012 and MIL-PRF-55342.
  • The expected lifespan of the 1004P1T1B9M7QE switch is 1,000,000 cycles minimum, with a mechanical life of 10,000,000 cycles typical.
  • Yes, the 1004P1T1B9M7QE switch is RoHS and REACH compliant, meeting the requirements of EU Directive 2011/65/EU and EU Regulation EC 1907/2006.
  • The recommended torque for the 1004P1T1B9M7QE switch is 0.5 N·m (4.4 lb·in) maximum.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1004P1T1B9M7QE Overview

Use the download button to access the 1004P1T1B9M7QE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1004P, or try a keyword search, such as Toggle Switches
