1004P3T1B3M7RE - E-Switch

Description: TOGGLE, 0.4VA, 20VAC/VDC 4PDT, On-Off-On Panel Mount, Through Hole, Right Angle, Vertical

Download 1004P3T1B3M7RE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 1004P3T1B3M7RE model

Email notifications will be applied after download.

Send part feedback

Symbol

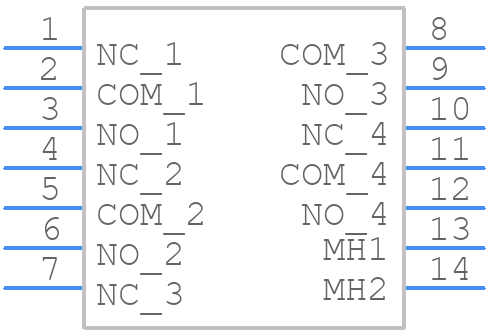

1004P3T1B3M7RE - E-Switch - PCB symbol

PCB Footprints

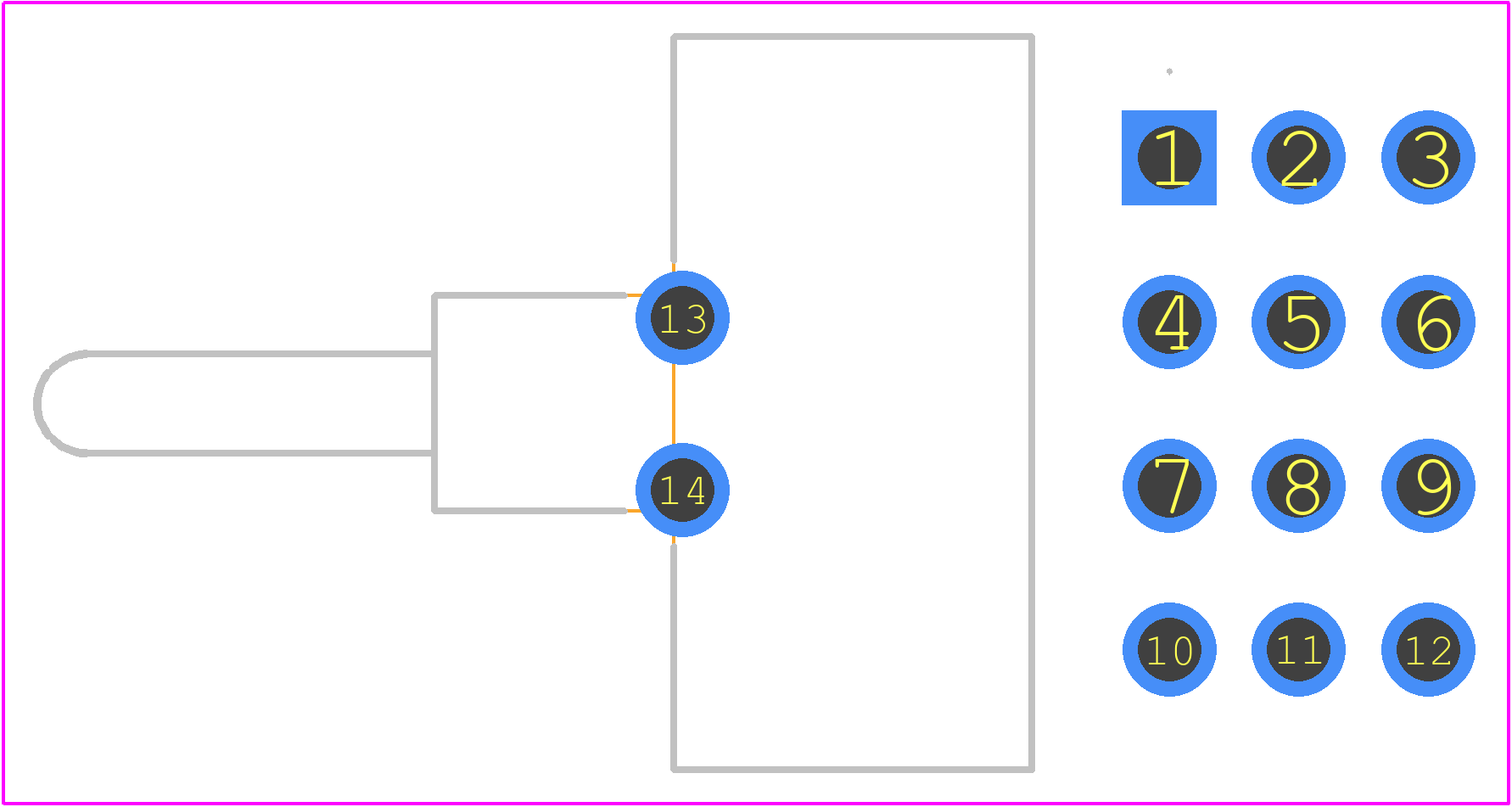

1004P3T1B3M7RE - E-Switch PCB footprint - Other - Other - 1004P3T1B3M7RE-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1004P3T1B3M7RE
Part Number 1004P3T1B3M7RE
Manufacturer E-Switch
Pin Count 14
Part Category Switch
Package Category Other
Footprint Name Other - 1004P3T1B3M7RE-1
Released Date Jan 4, 2025
Last Modified Date Dec 3, 2025 8:32 PM UTC
Pinout / Pin List Click Here (Member Only)

1004P3T1B3M7RE Details

Manufacturer Part Number:
1004P3T1B3M7RE
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
E-Switch Inc
Switch Type:
TOGGLE SWITCH
