1004P3T2B4M7QE - E-Switch

Description: TOGGLE, 5A, 120VAC/28VDC 4PDT, On-Off-On Through Hole, Right Angle, Vertical

Download 1004P3T2B4M7QE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

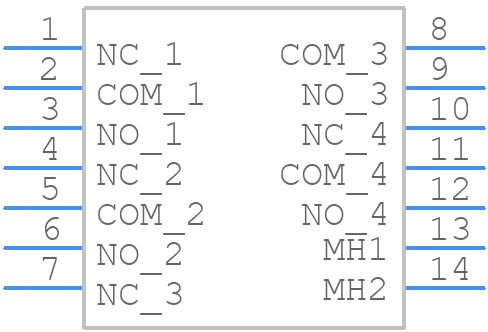

1004P3T2B4M7QE - E-Switch - PCB symbol
click to zoom
PCB Footprints

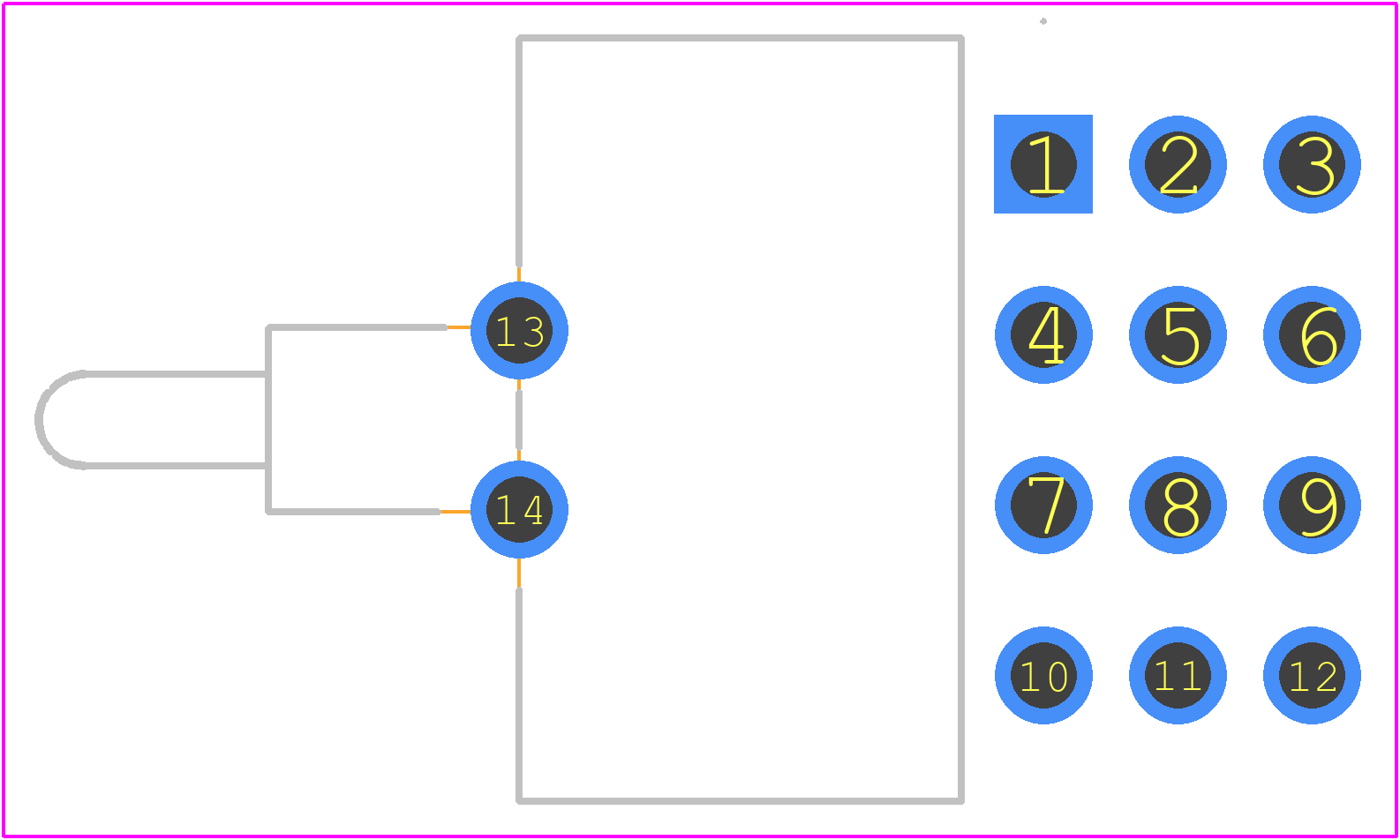

1004P3T2B4M7QE - E-Switch PCB footprint - Other - Other - 1004P3T2B4M7QE-2
click to zoom
3D Models
1004P3T2B4M7QE - E-Switch - 3D model - Other - 1004P3T2B4M7QE-2
click to zoom

1004P3T2B4M7QE Details

  • Manufacturer Part Number:

    1004P3T2B4M7QE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    E-Switch Inc

  • YTEOL:

    7.9

  • Switch Type:

    TOGGLE SWITCH

1004P3T2B4M7QE Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 1004P3T2B4M7QE switch is -20°C to 85°C.
  • Yes, the 1004P3T2B4M7QE switch is designed for high-reliability applications and meets the requirements of various industry standards, including MIL-STD-202 and IEC 61076-2-1.
  • The typical bounce time for the 1004P3T2B4M7QE switch is around 1-2 ms, but this can vary depending on the specific application and operating conditions.
  • Yes, the 1004P3T2B4M7QE switch is designed to operate in harsh environments and can withstand exposure to dust, moisture, and vibration.
  • Yes, the 1004P3T2B4M7QE switch is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1004P3T2B4M7QE Overview

Use the download button to access the 1004P3T2B4M7QE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1004P, or try a keyword search, such as Toggle Switches
