1004P6T4B1M2QEH footprint, schematic symbol and 3D model by E-Switch

Symbol

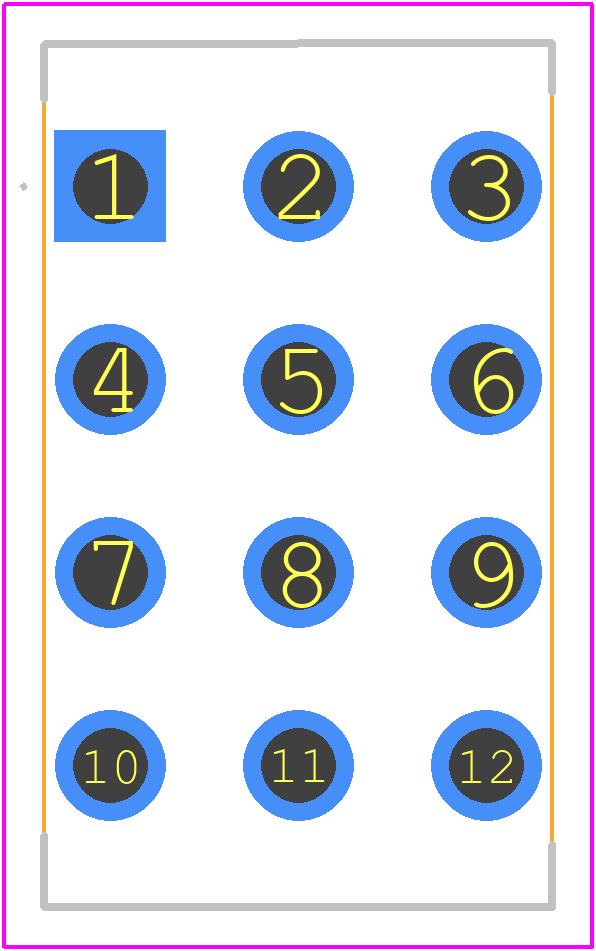

PCB Footprints

3D Models

1004P6T4B1M2QEH Details

The operating temperature range of the 1004P6T4B1M2QEH switch is -20°C to 85°C.
Yes, the 1004P6T4B1M2QEH switch is designed for high-reliability applications and meets the requirements of MIL-PRF-39012.
The contact resistance of the 1004P6T4B1M2QEH switch is typically less than 10 milliohms.
Yes, the 1004P6T4B1M2QEH switch is designed to operate in harsh environments, including high humidity, vibration, and shock.
The expected lifespan of the 1004P6T4B1M2QEH switch is typically 1 million cycles or more, depending on the operating conditions.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 1004P6T4B1M2QEH schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 1004P, or try a keyword search, such as Toggle Switches
