100AWDP1T1B1M2REH - E-Switch

100AWDP1T1B1M2REH Details

• Manufacturer Part Number:

  100AWDP1T1B1M2REH

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.70.00

• Manufacturer:

  E-Switch Inc

• Actuator Angle:

  25 deg

• Actuator Finish:

  CHROME

• Actuator Length:

  0.415 inch

• Actuator Material:

  BRASS

• Actuator Type:

  TOGGLE

• Body Breadth:

  11.43 mm

• Body Height:

  11.1506 mm

• Body Length or Diameter:

  12.7 mm

• Bushing Diameter:

  0.25 inch

• Bushing Length:

  0.316 inch

• Bushing Type:

  1/4-40

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD

• Contact (DC) Max Power Rating R Load:

  0.4VA@20VDC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.01 mΩ

• Dielectric Withstand Volts:

  1000VRMS V

• Electrical Life:

  30000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

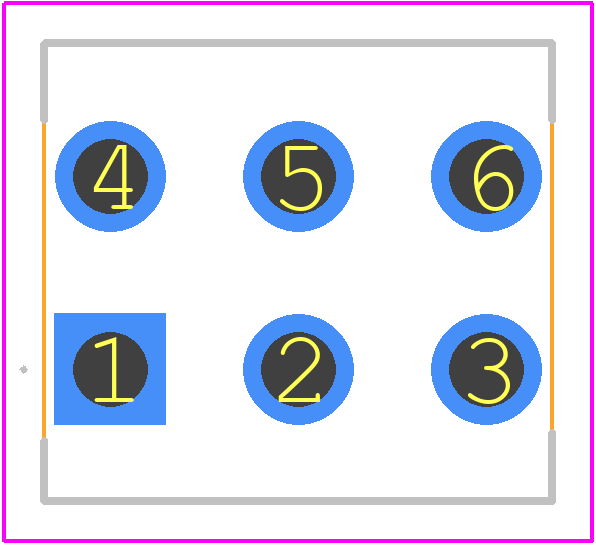

• PCB Hole Count:

  6

• Sealing:

  EPOXY

• Surface Mount:

  NO

• Switch Function:

  DPDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Finish:

  Gold (Au)

• Terminal Length:

  0.209 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
