100AWDP3T1B4M6QE - E-Switch

Description: TOGGLE, 5A, 120VAC/28VDC DPDT, On-Off-On Through Hole, Right Angle

Download 100AWDP3T1B4M6QE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 100AWDP3T1B4M6QE model

Email notifications will be applied after download.

Send part feedback

Symbol

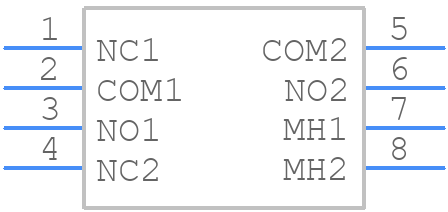

100AWDP3T1B4M6QE - E-Switch - PCB symbol

PCB Footprints

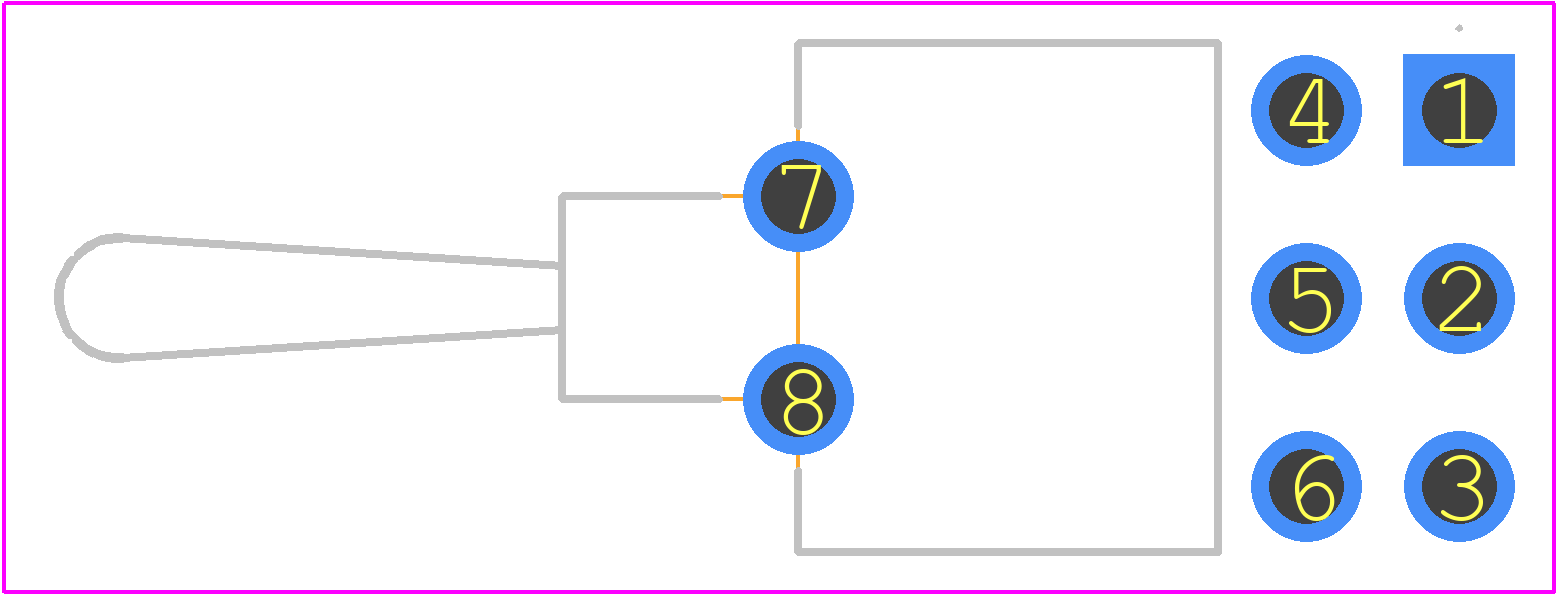

100AWDP3T1B4M6QE - E-Switch PCB footprint - Other - Other - 100AWDP3T1B4M6QE-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for 100AWDP3T1B4M6QE
Part Number 100AWDP3T1B4M6QE
Manufacturer E-Switch
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - 100AWDP3T1B4M6QE-3
Released Date Jan 4, 2025
Last Modified Date Dec 3, 2025 8:34 PM UTC
Pinout / Pin List Click Here (Member Only)

100AWDP3T1B4M6QE Details

Manufacturer Part Number:
100AWDP3T1B4M6QE
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
E-Switch Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

100AWDP3T1B4M6QE Overview

Use the download button to access the 100AWDP3T1B4M6QE schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 100AW, or try a keyword search, such as Toggle Switches
