100DP1T1B1M2QEH footprint, schematic symbol and 3D model by E-Switch

Symbol

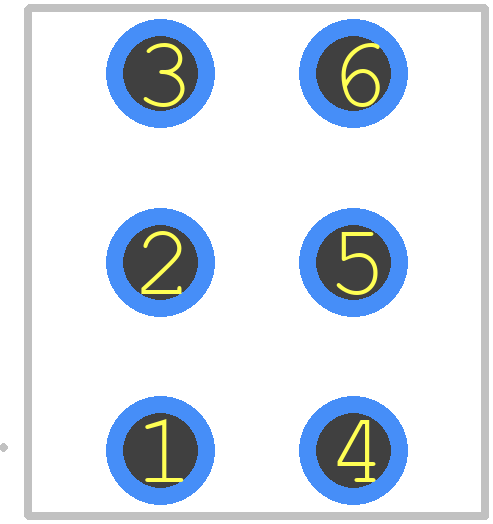

PCB Footprints

3D Models

100DP1T1B1M2QEH Details

The recommended operating temperature range for the 100DP1T1B1M2QEH is -20°C to 85°C.
Yes, the 100DP1T1B1M2QEH is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
The maximum switching current rating for the 100DP1T1B1M2QEH is 1A per contact.
Yes, the 100DP1T1B1M2QEH is UL recognized and meets the requirements of the European Union's RoHS and REACH directives.
The typical bounce time for the 100DP1T1B1M2QEH is 5ms.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 100DP1T1B1M2QEH schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 100DP, or try a keyword search, such as Toggle Switches
