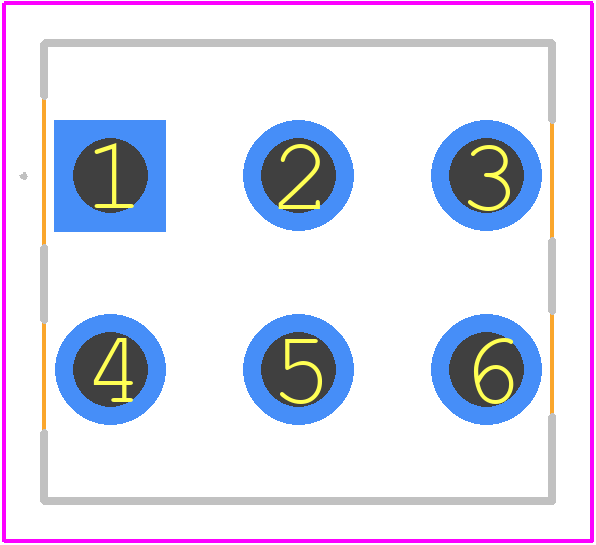

100DP1T1B1M2REH footprint, schematic symbol and 3D model by E-Switch

Symbol

PCB Footprints

3D Models

100DP1T1B1M2REH Details

The recommended operating temperature range for the 100DP1T1B1M2REH is -20°C to 85°C, as per the manufacturer's specifications.
Yes, the 100DP1T1B1M2REH is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
The typical actuation force required for the 100DP1T1B1M2REH is around 1.5 N to 2.5 N, depending on the specific application and usage.
Yes, the 100DP1T1B1M2REH is designed to withstand high-vibration and high-shock environments, making it suitable for industrial, automotive, and other demanding applications.
Yes, the 100DP1T1B1M2REH is available in various termination options, including through-hole, surface-mount, and wire-lead, to accommodate different PCB designs and assembly requirements.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 100DP1T1B1M2REH schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 100DP, or try a keyword search, such as Toggle Switches
