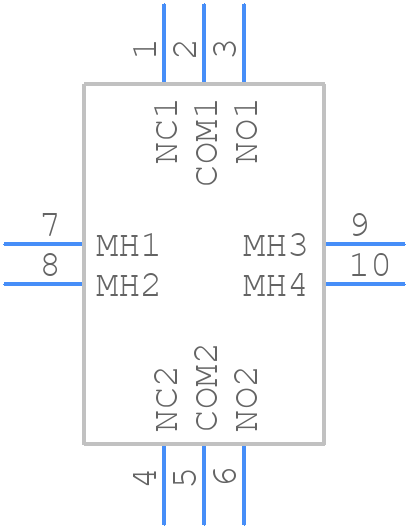

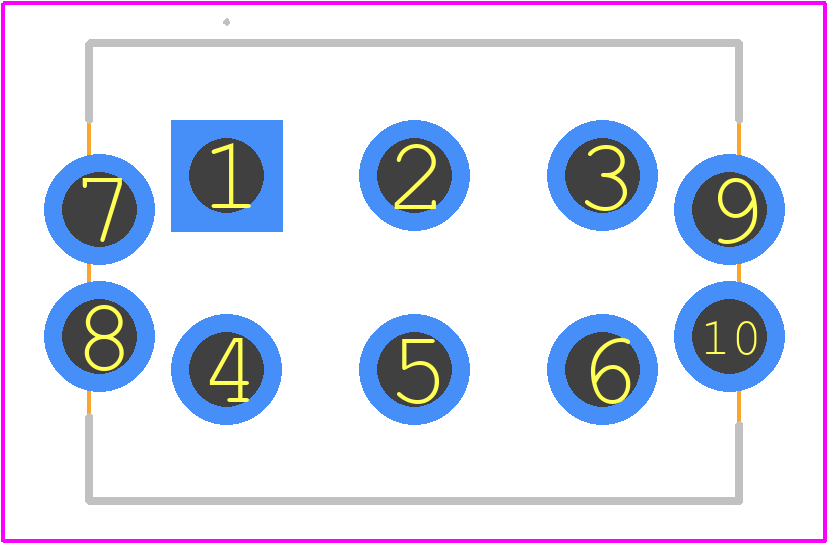

100DP1T1B1VS2QEH - E-Switch

100DP1T1B1VS2QEH Details

• Manufacturer Part Number:

  100DP1T1B1VS2QEH

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  E-Switch Inc

• YTEOL:

  7

• Actuator Angle:

  25 deg

• Actuator Finish:

  CHROME

• Actuator Length:

  0.41 inch

• Actuator Material:

  BRASS

• Actuator Type:

  STANDARD TOGGLE

• Body Breadth:

  11.43 mm

• Body Height:

  11.68 mm

• Body Length or Diameter:

  12.7 mm

• Bushing Diameter:

  0.249 inch

• Bushing Length:

  0.33 inch

• Bushing Type:

  1/4-40

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  SILVER OVER NICKEL

• Contact (AC) Max Rating R Load:

  5A@120VAC

• Contact Current(AC)-Max:

  5 A

• Contact Current(DC)-Max:

  5 A

• Contact (DC) Max Rating R Load:

  5A@28VDC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.01 mΩ

• Contact Voltage(AC)-Max:

  120 V

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  1000VRMS V

• Electrical Life:

  40000 Cycle(s)

• Housing Material:

  STAINLESS STEEL

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  DIALLYL PHTHALATE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

• PCB Hole Count:

  10

• Sealing:

  EPOXY

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  DPDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Finish:

  Silver (Ag)

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
