100DP1T2B1M71REH - E-Switch

Description: TOGGLE, 0.4VA, 20VAC/VDC DPDT, On-On Panel Mount, Through Hole, Right Angle, Vertical

Download 100DP1T2B1M71REH Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 100DP1T2B1M71REH model

Email notifications will be applied after download.

Send part feedback

Symbol

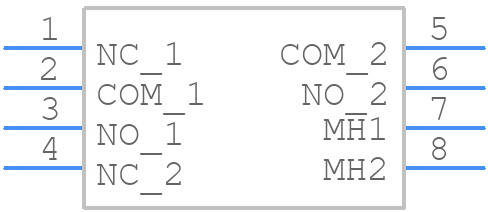

100DP1T2B1M71REH - E-Switch - PCB symbol

PCB Footprints

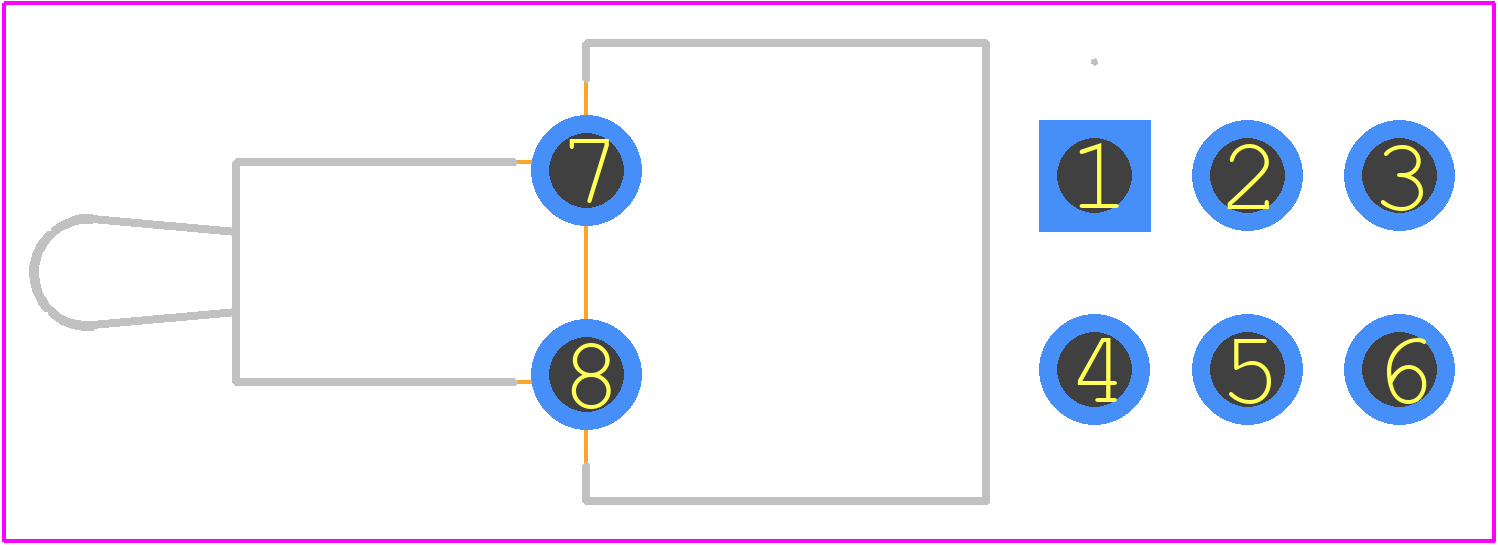

100DP1T2B1M71REH - E-Switch PCB footprint - Other - Other - 100DP1T2B1M71REH-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for 100DP1T2B1M71REH
Part Number 100DP1T2B1M71REH
Manufacturer E-Switch
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - 100DP1T2B1M71REH-3
Released Date Jan 1, 2025
Last Modified Date Dec 3, 2025 8:31 PM UTC
Pinout / Pin List Click Here (Member Only)

100DP1T2B1M71REH Details

Manufacturer Part Number:
100DP1T2B1M71REH
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
E-Switch Inc
Switch Type:
TOGGLE SWITCH

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

100DP1T2B1M71REH Overview

Use the download button to access the 100DP1T2B1M71REH schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 100DP, or try a keyword search, such as Toggle Switches
