100DP1T6B11M2REH footprint, schematic symbol and 3D model by E-Switch

Symbol

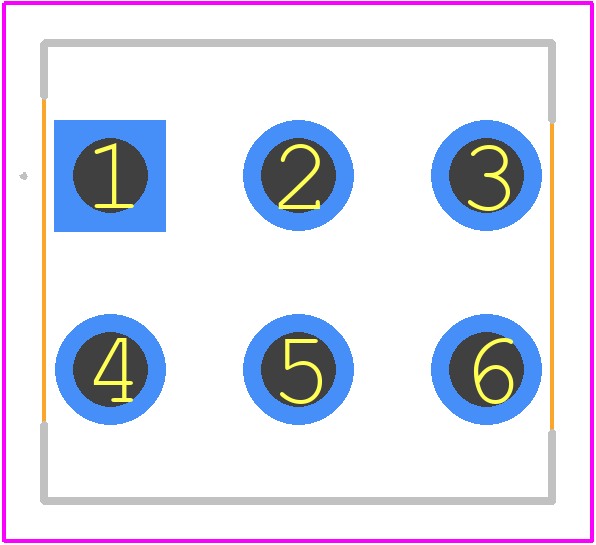

PCB Footprints

3D Models

100DP1T6B11M2REH Details

The operating temperature range of the 100DP1T6B11M2REH switch is -20°C to 85°C.
Yes, the 100DP1T6B11M2REH switch is designed for high-reliability applications and meets the requirements of MIL-PRF-39012.
The expected lifespan of the 100DP1T6B11M2REH switch is 1,000,000 cycles minimum, depending on the operating conditions.
Yes, the 100DP1T6B11M2REH switch is compatible with lead-free soldering processes and meets the requirements of RoHS and REACH directives.
The recommended torque for the switch's screw terminals is 0.5 N·m to 1.5 N·m (4.4 in·lb to 13.3 in·lb).

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the 100DP1T6B11M2REH schematic symbol, PCB footprint, and 3D model.
