100DP3T1B1M2QEH footprint, schematic symbol and 3D model by E-Switch

Symbol

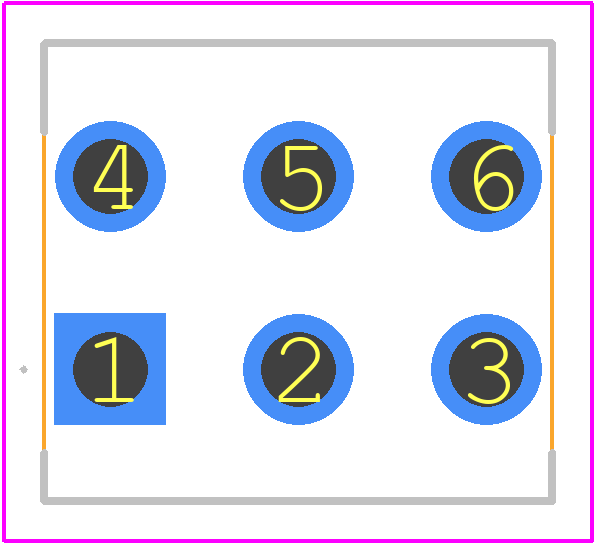

PCB Footprints

3D Models

100DP3T1B1M2QEH Details

The recommended operating temperature range for the 100DP3T1B1M2QEH switch is -20°C to 85°C.
Yes, the 100DP3T1B1M2QEH switch is designed for high-reliability applications, with a lifespan of up to 10,000 cycles.
The maximum voltage rating for the 100DP3T1B1M2QEH switch is 12V DC.
Yes, the 100DP3T1B1M2QEH switch meets the requirements for automotive applications, including resistance to vibration, shock, and extreme temperatures.
The typical actuation force required for the 100DP3T1B1M2QEH switch is around 1.5 N (newtons).
