100DP3T1B1M6REH - E-Switch

Description: TOGGLE, 0.4VA, 20VAC/VDC DPDT, On-Off-On Panel Mount, Through Hole, Right Angle

Download 100DP3T1B1M6REH Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 100DP3T1B1M6REH model

Email notifications will be applied after download.

Send part feedback

Symbol

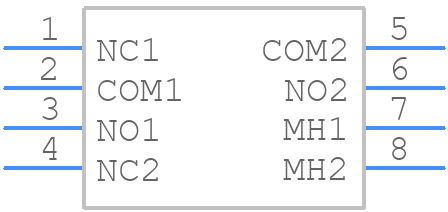

100DP3T1B1M6REH - E-Switch - PCB symbol

PCB Footprints

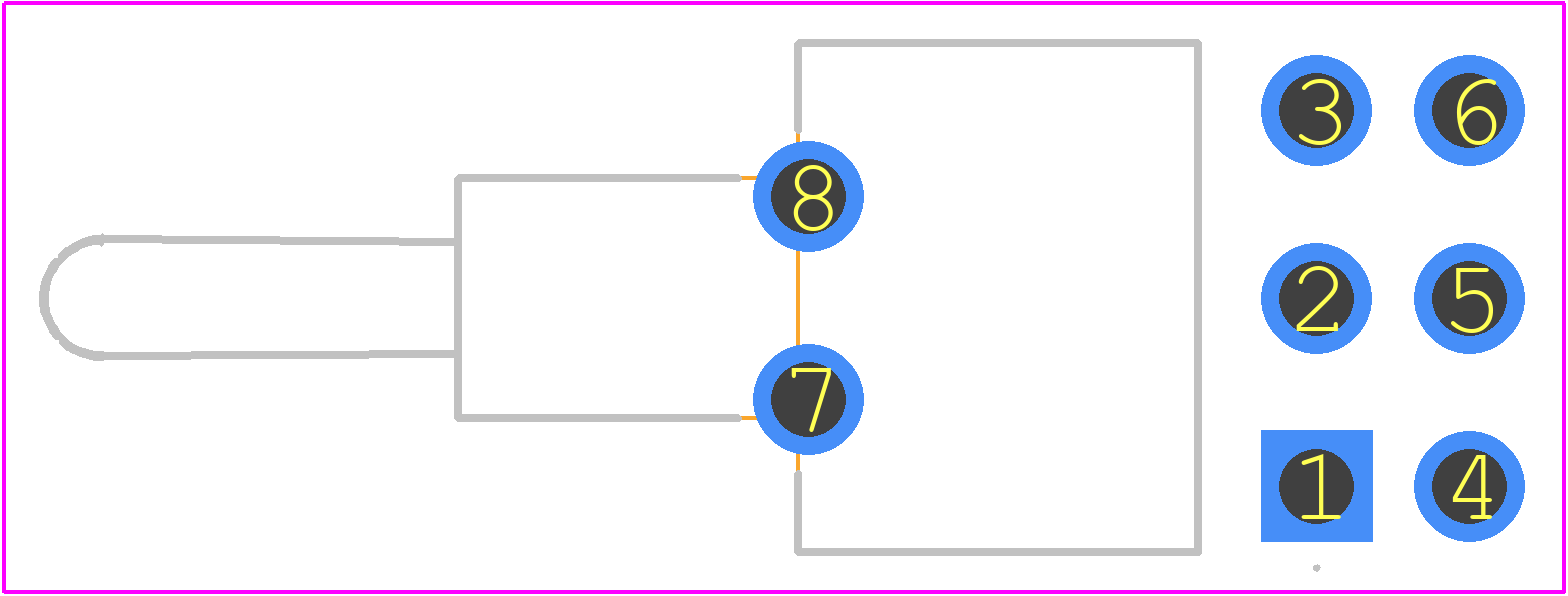

100DP3T1B1M6REH - E-Switch PCB footprint - Other - Other - 100DP3T1B1M6REH-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 100DP3T1B1M6REH
Part Number 100DP3T1B1M6REH
Manufacturer E-Switch
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - 100DP3T1B1M6REH-2
Released Date Jan 1, 2025
Last Modified Date Dec 3, 2025 8:31 PM UTC
Pinout / Pin List Click Here (Member Only)

100DP3T1B1M6REH Details

Manufacturer Part Number:
100DP3T1B1M6REH
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.50.90.65
Manufacturer:
E-Switch Inc
YTEOL:
7
Switch Type:
TOGGLE SWITCH
