100DP3T2B4M7RE - E-Switch

Description: TOGGLE, 0.4VA, 20VAC/VDC DPDT, On-Off-On Through Hole, Right Angle, Vertical , -30°C ~ 85°C

Download 100DP3T2B4M7RE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 100DP3T2B4M7RE model

Email notifications will be applied after download.

Send part feedback

Symbol

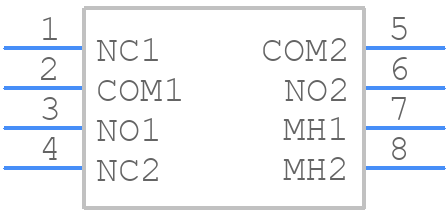

100DP3T2B4M7RE - E-Switch - PCB symbol

PCB Footprints

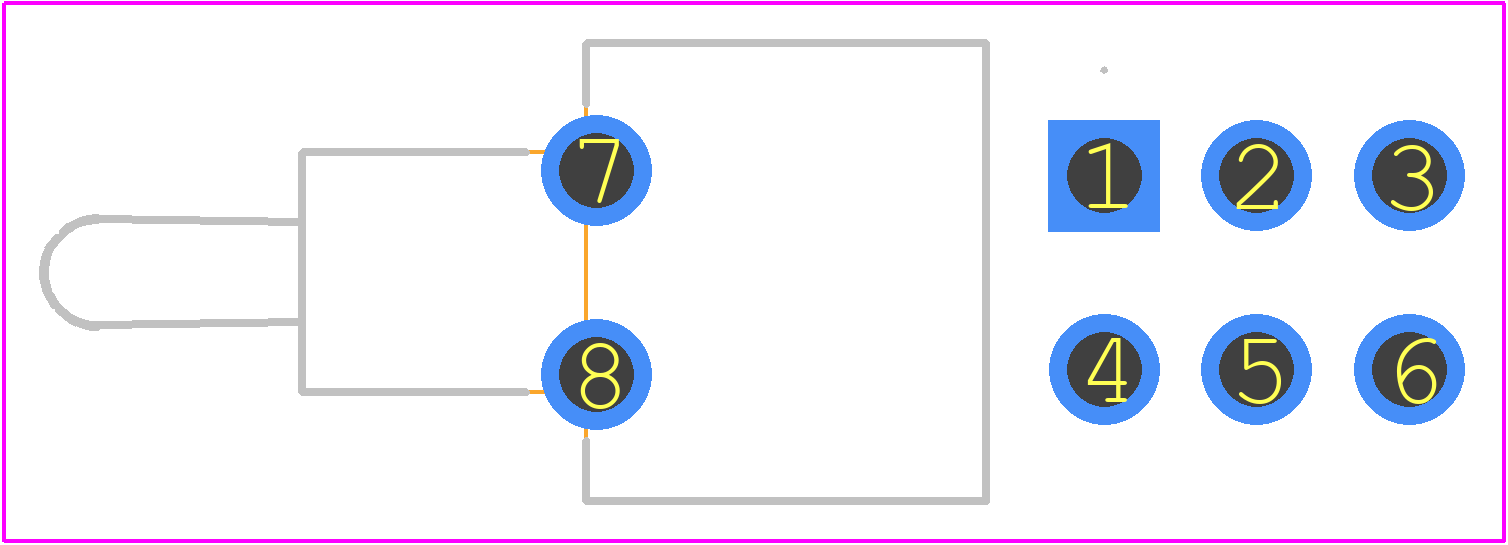

100DP3T2B4M7RE - E-Switch PCB footprint - Other - Other - 100DP3T2B4M7RE-2

3D Models

100DP3T2B4M7RE - E-Switch - 3D model - Other - 100DP3T2B4M7RE-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 100DP3T2B4M7RE
Part Number 100DP3T2B4M7RE
Manufacturer E-Switch
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - 100DP3T2B4M7RE-2
Released Date Jan 1, 2025
Last Modified Date Jan 1, 2025 8:00 AM UTC
Pinout / Pin List Click Here (Member Only)

100DP3T2B4M7RE Details

Manufacturer Part Number:
100DP3T2B4M7RE
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.50.90.65
Manufacturer:
E-Switch Inc
YTEOL:
8
Switch Type:
TOGGLE SWITCH

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

100DP3T2B4M7RE Overview

Use the download button to access the 100DP3T2B4M7RE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 100DP, or try a keyword search, such as Toggle Switches
