100DP4T1B1M53QEH footprint, schematic symbol and 3D model by E-Switch

Symbol

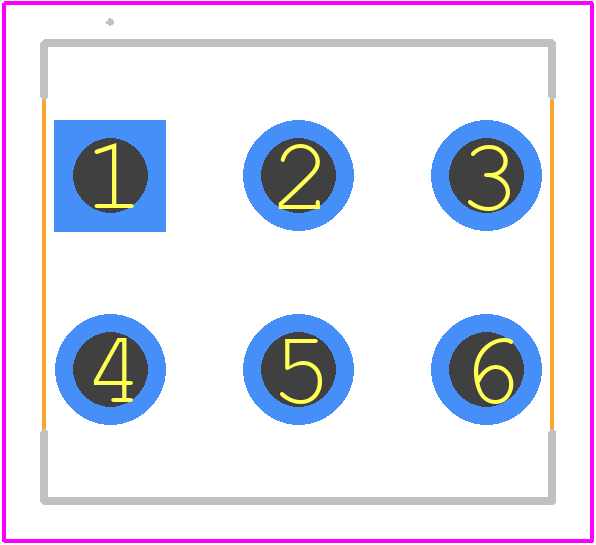

PCB Footprints

3D Models

100DP4T1B1M53QEH Details

The recommended operating temperature range for the 100DP4T1B1M53QEH switch is -20°C to 70°C.
Yes, the 100DP4T1B1M53QEH switch is designed for high-reliability applications, with a long lifespan and low contact resistance.
Yes, the 100DP4T1B1M53QEH switch is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
The maximum switching frequency for the 100DP4T1B1M53QEH switch is 100 cycles per minute.
Yes, the 100DP4T1B1M53QEH switch is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
