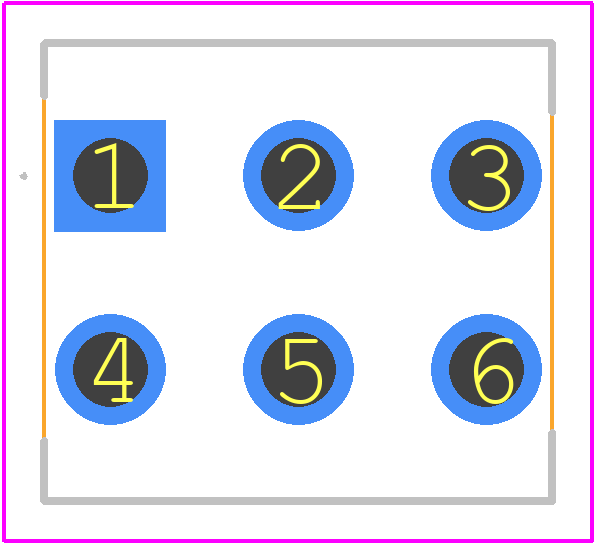

100DP4T8B13M2REH footprint, schematic symbol and 3D model by E-Switch

Symbol

PCB Footprints

3D Models

100DP4T8B13M2REH Details

The operating temperature range of the 100DP4T8B13M2REH switch is -20°C to 85°C.
Yes, the 100DP4T8B13M2REH switch is designed for high-reliability applications and has a long lifespan of up to 10,000 cycles.
The actuation force required to operate the 100DP4T8B13M2REH switch is approximately 2.5 N (250 gf).
The 100DP4T8B13M2REH switch is not designed to be washed or cleaned with liquids, and exposure to moisture may affect its performance and reliability.
The 100DP4T8B13M2REH switch is designed for indoor use and may not be suitable for outdoor or harsh environmental applications without proper protection and sealing.
