100DP6T3B2M6RE - E-Switch

Description: TOGGLE, 0.4VA, 20VAC/VDC DPDT, On-On-On Through Hole, Right Angle

Download 100DP6T3B2M6RE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 100DP6T3B2M6RE model

Email notifications will be applied after download.

Send part feedback

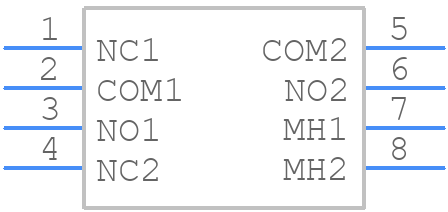

Symbol

100DP6T3B2M6RE - E-Switch - PCB symbol

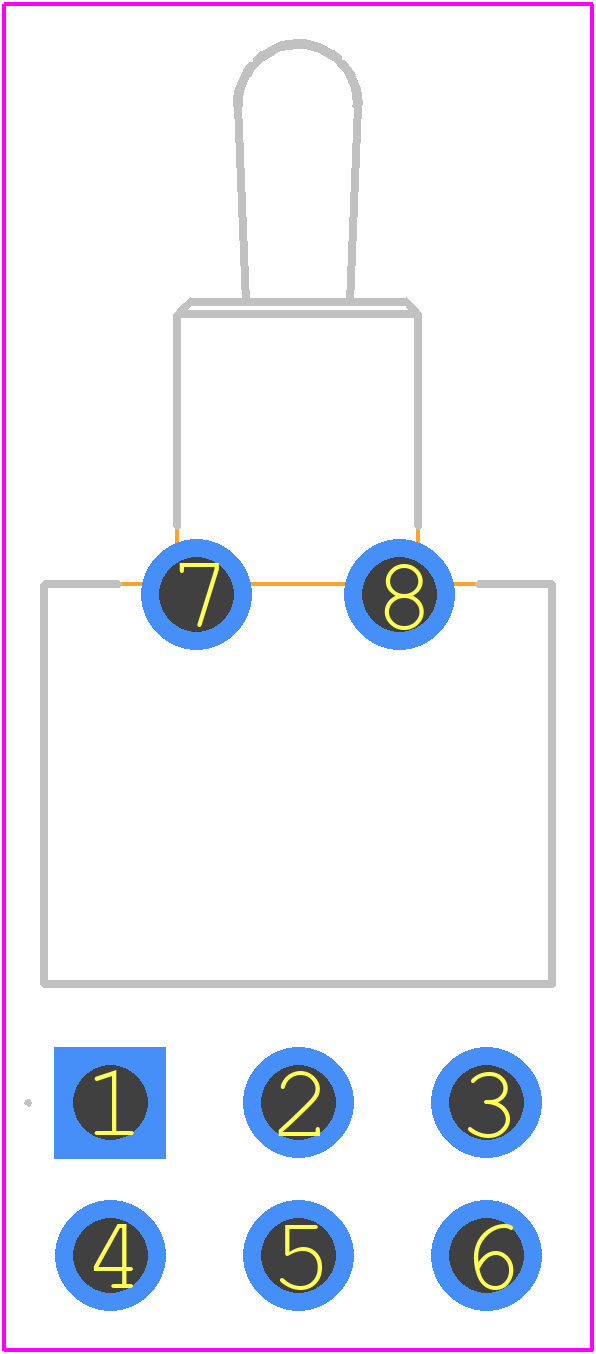

PCB Footprints

100DP6T3B2M6RE - E-Switch PCB footprint - Other - Other - 100DP6T3B2M6RE-7

Datasheet Download Datasheet
Stock & Prices Price & Stock for 100DP6T3B2M6RE
Part Number 100DP6T3B2M6RE
Manufacturer E-Switch
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - 100DP6T3B2M6RE-7
Released Date Jan 23, 2025
Last Modified Date Dec 3, 2025 8:48 PM UTC
Pinout / Pin List Click Here (Member Only)

100DP6T3B2M6RE Details

Manufacturer Part Number:
100DP6T3B2M6RE
Manufacturer:
E-Switch Inc

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

100DP6T3B2M6RE Overview

Use the download button to access the 100DP6T3B2M6RE schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 100DP, or try a keyword search, such as Toggle Switches
