100DP7T7B13M7QE - E-Switch

Description: TOGGLE, 5A, 120VAC/28VDC DPDT, On-On-(On) Panel Mount, Through Hole, Right Angle, Vertical, -30°C ~ 85°C

Download 100DP7T7B13M7QE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 100DP7T7B13M7QE model

Email notifications will be applied after download.

Send part feedback

Symbol

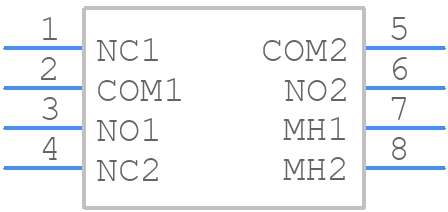

100DP7T7B13M7QE - E-Switch - PCB symbol

PCB Footprints

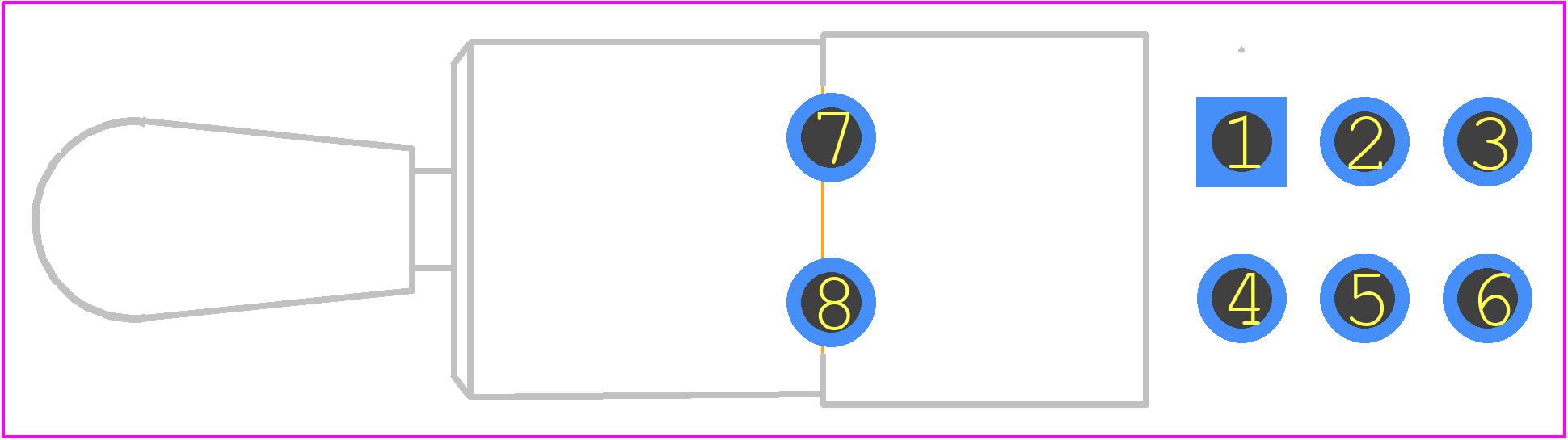

100DP7T7B13M7QE - E-Switch PCB footprint - Other - Other - 100DP7T7B13M7QE-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 100DP7T7B13M7QE
Part Number 100DP7T7B13M7QE
Manufacturer E-Switch
Pin Count 8
Part Category Switch
Package Category Other
Footprint Name Other - 100DP7T7B13M7QE-2
Released Date Jan 23, 2025
Last Modified Date Dec 3, 2025 8:47 PM UTC
Pinout / Pin List Click Here (Member Only)

100DP7T7B13M7QE Details

Manufacturer Part Number:
100DP7T7B13M7QE
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
E-Switch Inc
Switch Type:
TOGGLE SWITCH

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

100DP7T7B13M7QE Overview

Use the download button to access the 100DP7T7B13M7QE schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 100DP, or try a keyword search, such as Toggle Switches
