100HV-2-A-12/1D - Pickering

Description: Pickering Series 100 reed relay 100HV-2-A-12/1D: 2 Form A - DPST N.O.; 1.5kV Standoff; 1A, 25W, 1000V switching, 1000V stand-off; 12V coil, 2500 Ω; diode fitted; 10.2×29×15.2mm. Industries: ATE, semiconductor test, solar/PV monitoring, EV/battery test.

Download 100HV-2-A-12/1D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

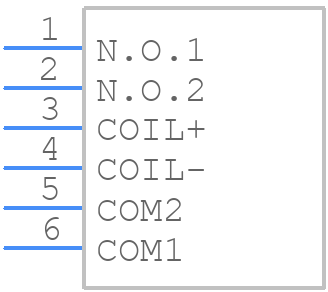

Symbol
100HV-2-A-12/1D - Pickering - PCB symbol
click to zoom

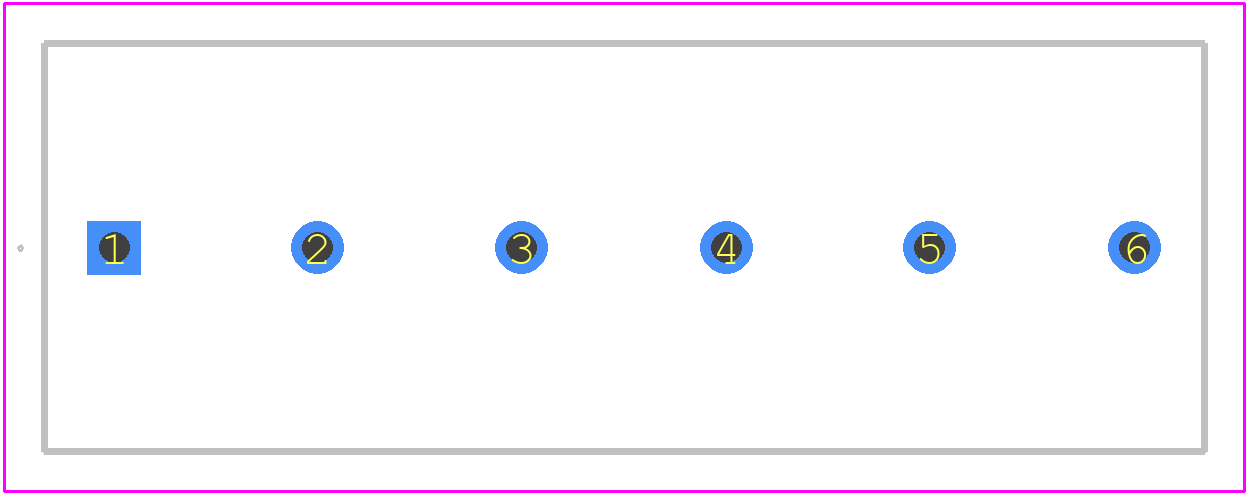

PCB Footprints
