The recommended operating temperature range for the 100SP3T1B4M7QE is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the switch's performance and lifespan may be affected if operated outside this range for extended periods.
To ensure the switch's contacts are clean and free of contaminants, it's recommended to handle the switch by the edges, avoid touching the contacts, and store the switch in a clean, dry environment. If contamination is suspected, gently clean the contacts with a soft brush and a mild solvent, such as isopropyl alcohol.
The maximum switching frequency for the 100SP3T1B4M7QE is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to limit the switching frequency to 10-20 Hz to ensure reliable operation and prevent contact wear. Higher frequencies may be possible, but it's essential to consult with E-Switch Inc or perform thorough testing to determine the switch's suitability for your specific application.
The 100SP3T1B4M7QE is designed to operate in a variety of environments, including those with moderate vibration. However, it's essential to ensure the switch is properly mounted and secured to prevent excessive movement or shock, which could affect its performance or lifespan. If you're planning to use the switch in a high-vibration environment, consult with E-Switch Inc or perform thorough testing to determine its suitability.
The correct actuator force for the 100SP3T1B4M7QE depends on the specific application and operating conditions. As a general guideline, the recommended actuator force is 1.5 N to 2.5 N. However, it's essential to consult the datasheet and E-Switch Inc's application notes for more detailed information and to ensure the switch is operated within its specified limits.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
100SP3T1B4M7QE Overview

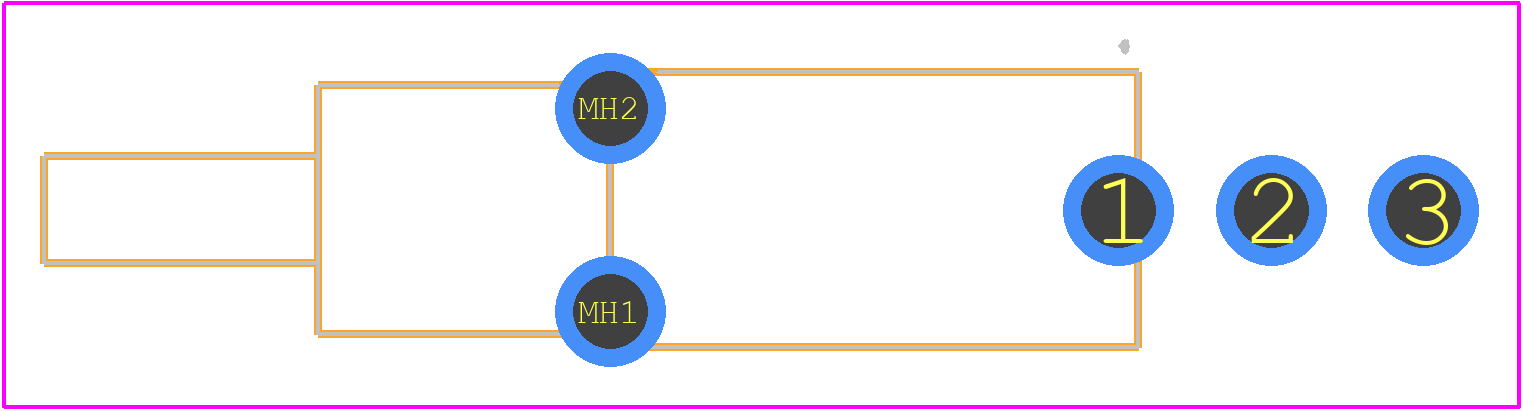

Use the download button to access the 100SP3T1B4M7QE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 100SP,
or try a keyword search, such as Toggle Switches
