101-80014 - ept

Description: Conn DIN 41612 M 20 POS 2.54mm Solder RA Thru-Hole Tube

Download 101-80014 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

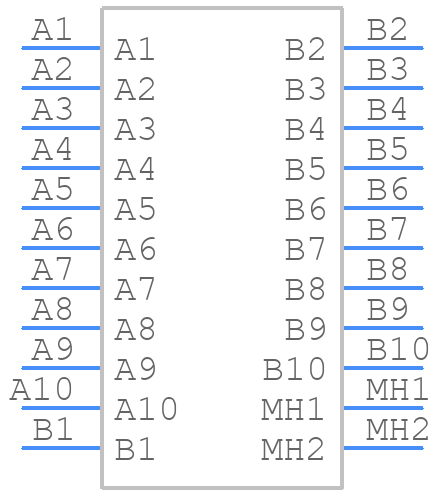

Symbol
101-80014 - ept - PCB symbol
click to zoom

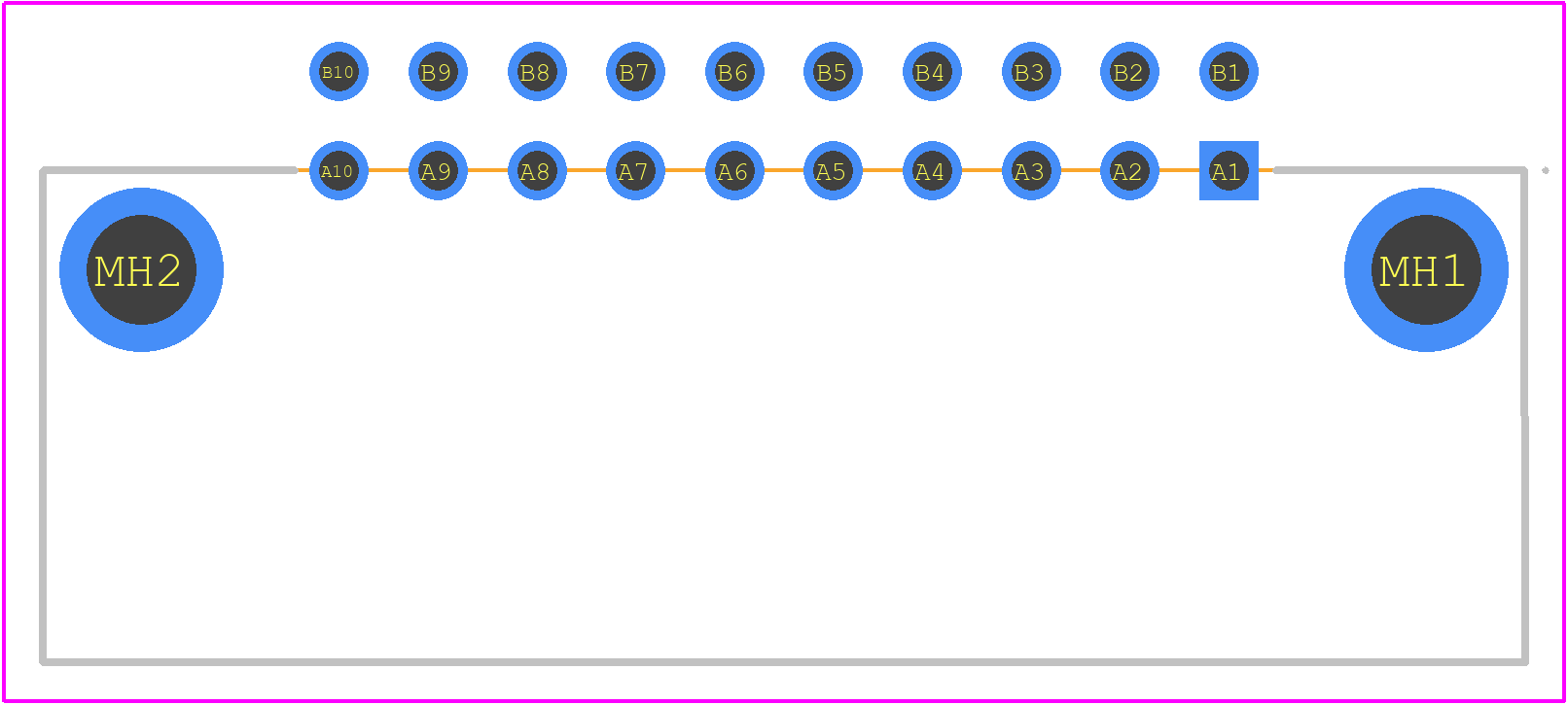

PCB Footprints
101-80014 - ept PCB footprint - Other - Other - 101-80014-1
click to zoom
3D Models
101-80014 - ept - 3D model - Other - 101-80014-1
click to zoom

101-80014 Details

  • Manufacturer Part Number:

    101-80014

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    ept Connectors

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: DIN 41612, IEC 60603-2

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

101-80014 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • Yes, the 101-80014 connector is designed to withstand vibrations up to 10g according to IEC 61373, making it suitable for high-vibration applications.
  • Yes, the connector is IP67 rated, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • The maximum operating temperature of the connector is 125°C, making it suitable for high-temperature applications.
  • No, the connector is not recommended for use with aluminum wires due to the risk of galvanic corrosion. It is recommended to use copper or copper-alloy wires instead.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

101-80014 Overview

Use the download button to access the 101-80014 schematic symbol, PCB footprint, and 3D model.
