1010070864 footprint, schematic symbol and 3D model by Amphenol

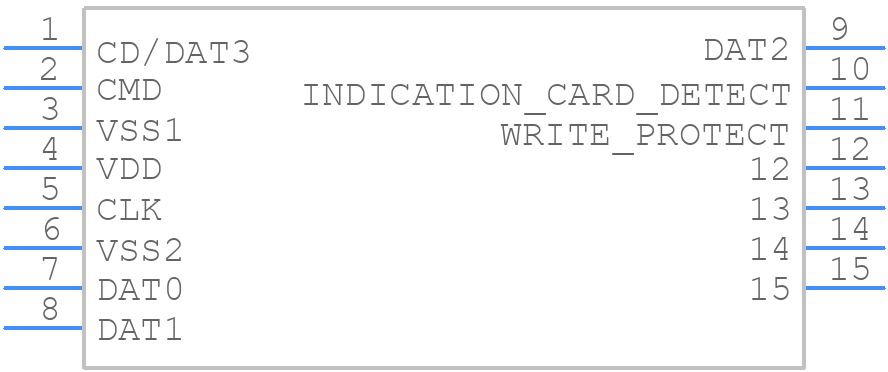

Symbol

click to zoom

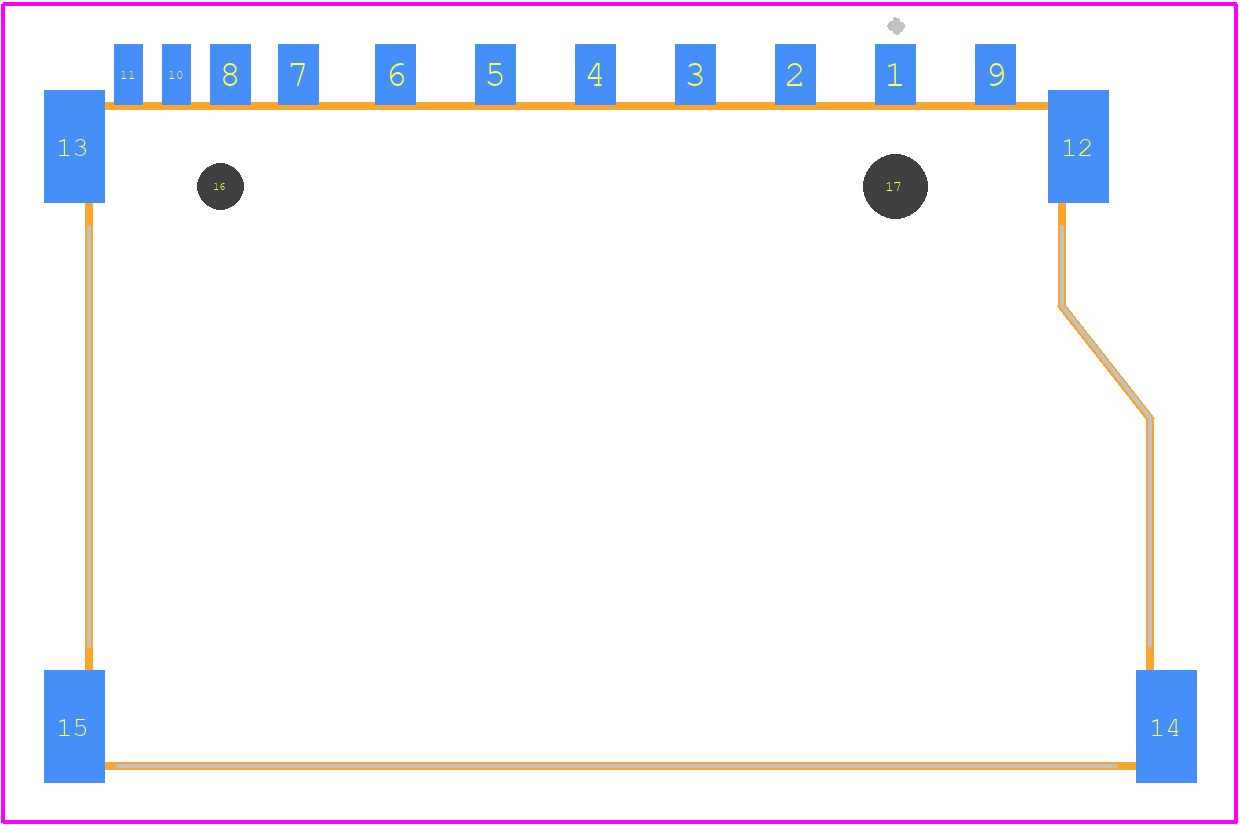

PCB Footprints

1010070864 - Amphenol PCB footprint - Other - Other - 1010070864-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1010070864
Part Number 1010070864
Manufacturer Amphenol
Pin Count 15
Part Category Connector
Package Category Other
Footprint Name Other - 1010070864-3
Released Date May 31, 2019
Last Modified Date Feb 7, 2026 10:16 AM UTC
Pinout / Pin List Click Here (Member Only)

1010070864 Details

Manufacturer Part Number:
1010070864
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Amphenol Corporation
YTEOL:
0
Board Mounting Option:
PEG
Body Breadth:
0.112 inch
Body Depth:
0.65 inch
Body Length:
1.044 inch
Connector Type:
PCB CONNECTOR
Contact Gender:
FEMALE
Contact Pattern:
RECTANGULAR
Contact Resistance:
80 mΩ
Contact Style:
COMPRESSION
Dielectric Withstanding Voltage:
500VAC V
Filter Feature:
NO
Insertion Force-Max:
40 N
Insulation Resistance:
1000000000 Ω
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
60 °C
Operating Temperature-Min:
-20 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Plating Thickness:
1u inch
Rated Current (Signal):
0.5 A
Terminal Pitch:
1.2 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
9
Withdrawl Force-Min:
2 N

1010070864 Frequently Asked Questions (FAQs)

The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads. However, it's essential to consult the specific application requirements and environmental conditions to determine the optimal torque value.
Yes, the 1010070864 connector is designed to withstand high-vibration environments. It meets the vibration requirements of MIL-DTL-38999, which includes sinusoidal vibration testing at 20 Gs peak from 10-2000 Hz.
The operating temperature range for the 1010070864 connector is -65°C to 200°C (-85°F to 392°F). However, it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.
Yes, the 1010070864 connector is designed to operate in harsh environments. It features a ruggedized design and is sealed to IP67 standards, making it suitable for use in humid or chemically exposed environments.
The mating cycle life of the 1010070864 connector is 500 cycles minimum. However, this may vary depending on the specific application, environmental conditions, and maintenance practices.

Trust Checks

Expert Contribution

System Verified

Community Approved

1010070864 Overview

Use the download button to access the 1010070864 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 10100, or try a keyword search, such as Headers and Edge Type Connectors
