10120-52B2PC footprint, schematic symbol and 3D model by 3M

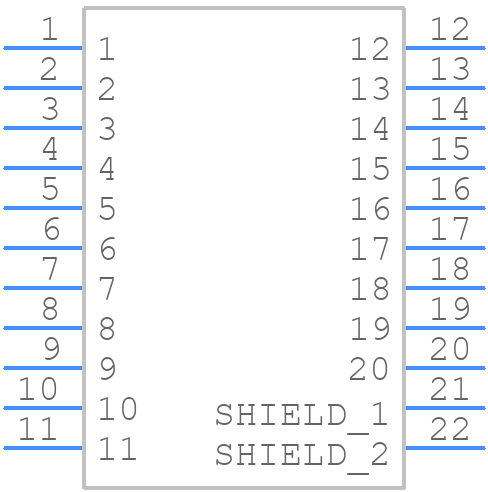

Symbol

click to zoom

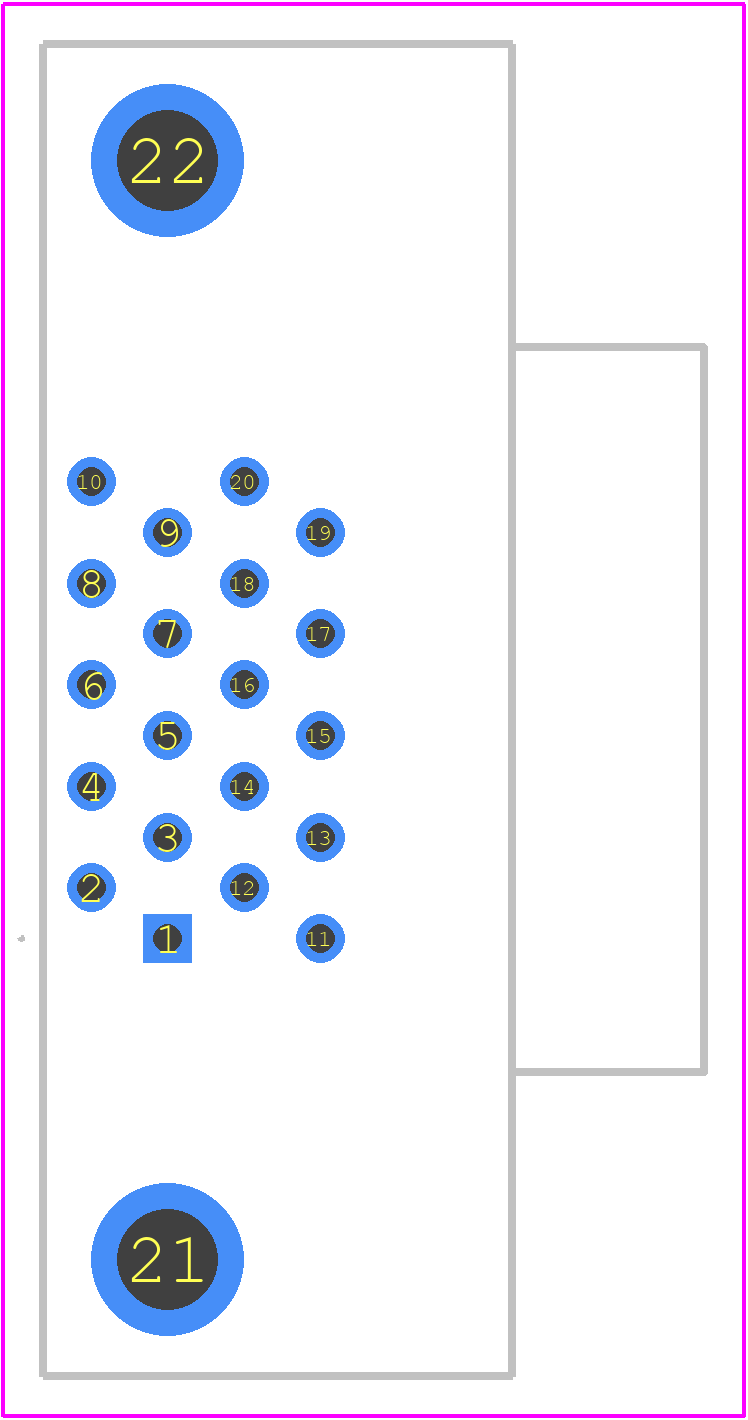

PCB Footprints

10120-52B2PC - 3M PCB footprint - Other - Other - 10120-52B2PC-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 10120-52B2PC
Part Number 10120-52B2PC
Manufacturer 3M
Pin Count 22
Part Category Connector
Package Category Other
Footprint Name Other - 10120-52B2PC-3
Released Date Aug 6, 2025
Last Modified Date Apr 24, 2026 5:37 AM UTC
Pinout / Pin List Click Here (Member Only)

10120-52B2PC Details

Manufacturer Part Number:
10120-52B2PC
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
12 Weeks, 1 Day
Manufacturer:
3M Interconnect
YTEOL:
6.8
Connector Type:
RIBBON D CONNECTOR
Contact Finish Mating:
GOLD (30) OVER NICKEL (80)
Contact Finish Termination:
GOLD FLASH OVER NICKEL (80)
Contact Material:
COPPER ALLOY
DIN Conformance:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO

10120-52B2PC Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
Yes, the 10120-52B2PC is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
Yes, the connector is suitable for outdoor use, but it's recommended to use a protective coating or sealant to ensure IP67 rating.
The maximum operating temperature for the 10120-52B2PC is 125°C (257°F).
It's not recommended to use a wire gauge that's not specified in the datasheet, as it may affect the connector's performance and reliability.

Trust Checks

Community Provided

System Verified

Community Approved

10120-52B2PC Overview

Use the download button to access the 10120-52B2PC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 10120, or try a keyword search, such as Telecom and Datacom Connectors
