10126-5212PC - 3M

Description: 3M MDR 102 Series 1.27mm Pitch 26 Way Right Angle Through Hole Mount Micro-D PCB Connector, Plug

Download 10126-5212PC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

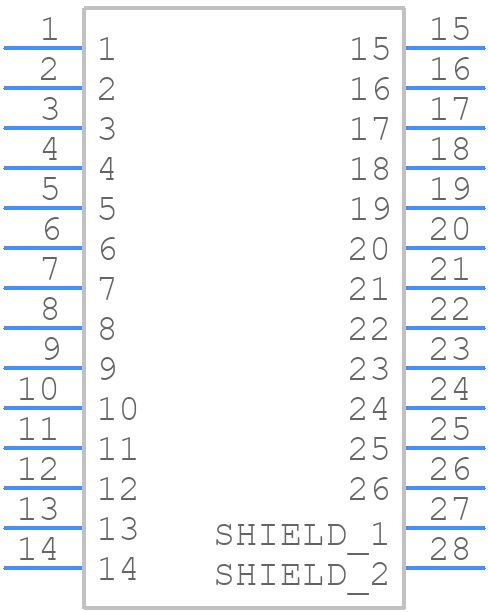

10126-5212PC - 3M - PCB symbol
click to zoom
PCB Footprints

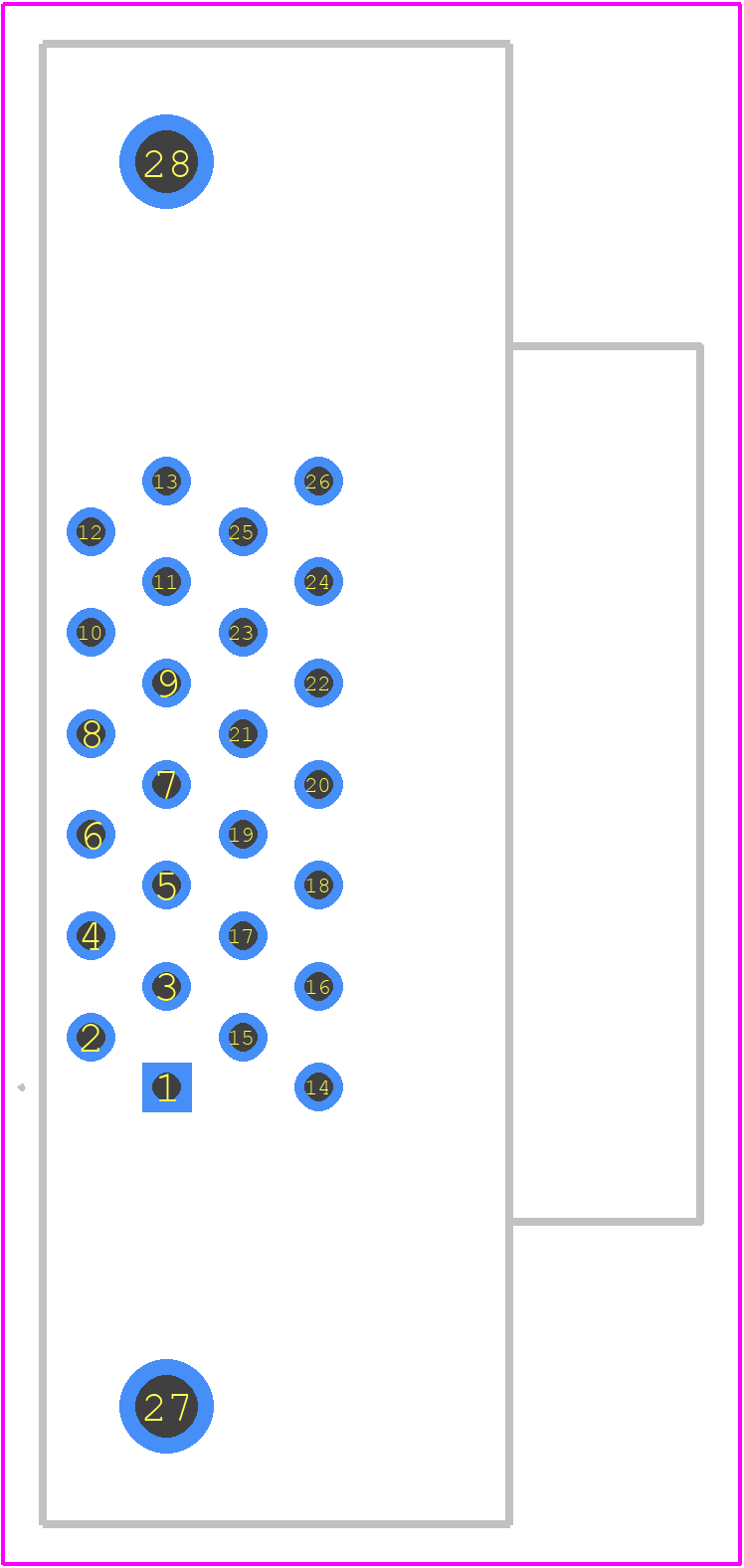

10126-5212PC - 3M PCB footprint - Other - Other - 10126-5212PC-3
click to zoom

10126-5212PC Details

  • Manufacturer Part Number:

    10126-5212PC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    6.8

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (80)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL (80)

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

10126-5212PC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the 10126-5212PC is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • Yes, the connector is suitable for outdoor use, but it's recommended to use a protective coating or sealant to ensure IP67 rating.
  • The maximum operating temperature for the 10126-5212PC is 125°C (257°F).
  • No, the connector is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance.
