10142048-02 - TE Connectivity

Description: HTU31D I.C 31D RH/T DIGITAL R5000 Digital Relative Humidity sensor with Temperature output

Download 10142048-02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

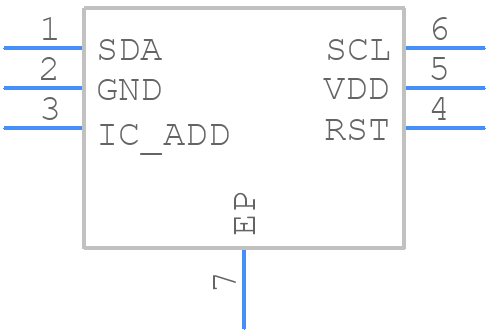

10142048-02 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
10142048-02 - TE Connectivity PCB footprint - Small Outline No-lead - Small Outline No-lead - HTU31D
click to zoom
3D Models
10142048-02 - TE Connectivity - 3D model - Small Outline No-lead - HTU31D
click to zoom

10142048-02 Details

  • Manufacturer Part Number:

    10142048-02

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Factory Lead Time:

    10 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Operating Current-Max:

    1 mA

  • Operating Temperature-Max:

    257 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    DIGITAL OUTPUT

  • Response Time:

    3000000 µs

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V
