10150-52E2PC footprint, schematic symbol and 3D model by 3M

Symbol

click to zoom

PCB Footprints

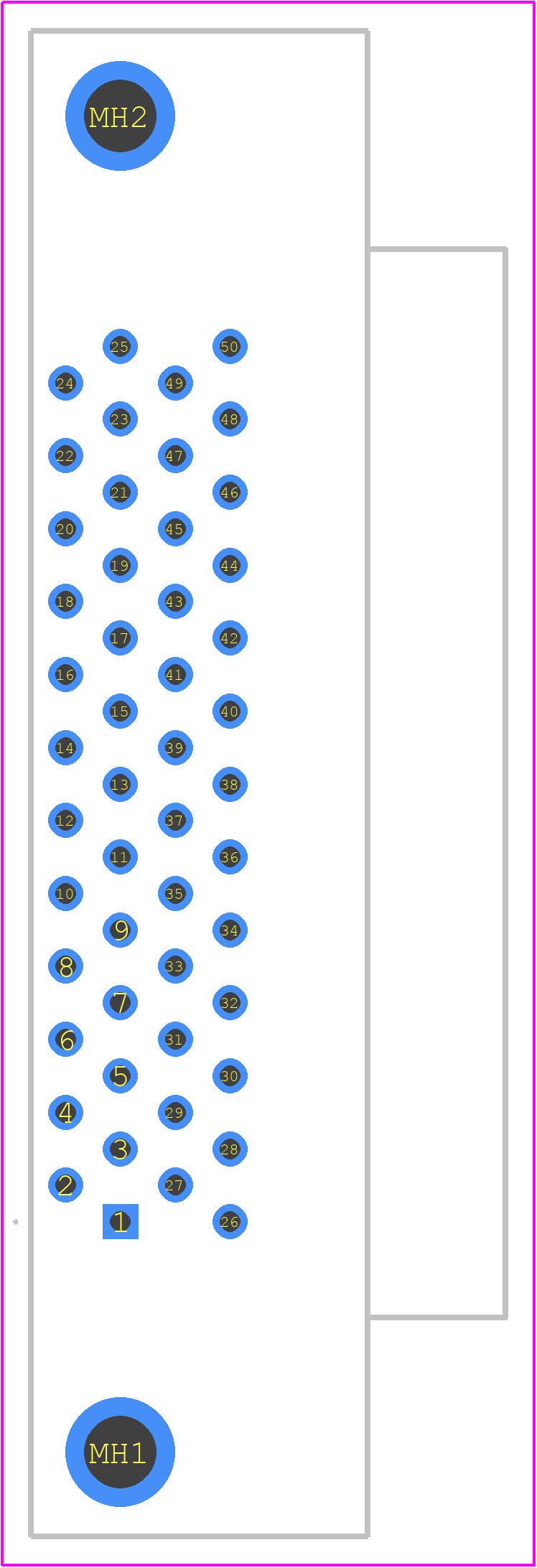

10150-52E2PC - 3M PCB footprint - Other - Other - 10150-52E2PC-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 10150-52E2PC
Part Number 10150-52E2PC
Manufacturer 3M
Pin Count 52
Part Category Connector
Package Category Other
Footprint Name Other - 10150-52E2PC-2
Released Date Mar 18, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

10150-52E2PC Details

Manufacturer Part Number:
10150-52E2PC
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
19 Weeks
Manufacturer:
3M Interconnect
YTEOL:
6.8
Connector Type:
RIBBON D CONNECTOR
Contact Finish Mating:
GOLD (30) OVER NICKEL (80)
Contact Finish Termination:
Gold Flash (Au) - with Nickel (Ni) barrier
Contact Material:
COPPER ALLOY
DIN Conformance:
NO
IEC Conformance:
NO
MIL Conformance:
NO

10150-52E2PC Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the 10150-52E2PC is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
Yes, the connector is sealed to IP67 rating, making it suitable for outdoor use in harsh environments.
The maximum operating temperature for the 10150-52E2PC is 125°C (257°F).
No, the connector is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may compromise the connector's performance and reliability.

Trust Checks

Community Provided

System Verified

Community Approved

10150-52E2PC Overview

Use the download button to access the 10150-52E2PC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 10150, or try a keyword search, such as Telecom and Datacom Connectors
