1017493 - Phoenix Contact

Description: TDPT 2,5/ 4-SC-5,08 - Printed circuit board terminal, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm<sup>2</sup>, number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: TDPT 2,5/..-SC, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins

Download 1017493 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1017493 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

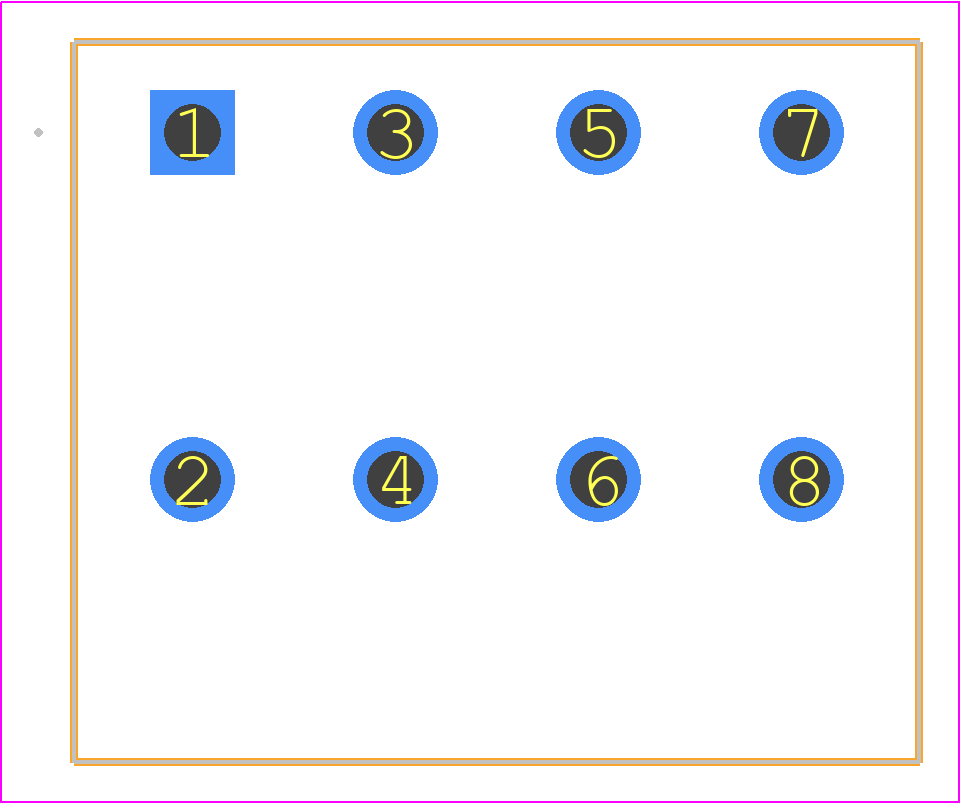

1017493 - Phoenix Contact PCB footprint - Other - Other - 1017493
click to zoom
3D Models
1017493 - Phoenix Contact - 3D model - Other - 1017493
click to zoom

1017493 Details

  • Manufacturer Part Number:

    1017493

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    6.5

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    24 A

  • Rated Voltage:

    400 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

1017493 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 1017493 is -40°C to 125°C.
  • Yes, the 1017493 is designed for outdoor use and has a IP67 rating, making it resistant to dust and water ingress.
  • Yes, the 1017493 is certified for use in hazardous locations, including Class I, Division 2 and Zone 2 areas.
  • The 1017493 can accommodate wire sizes up to 2.5 mm² (14 AWG).
  • Yes, the 1017493 is designed to be compatible with other Phoenix Contact products, including their range of connectors and cables.
