1017516 - Phoenix Contact

Description: TDPT 4/ 4-SC-6,35-ZB - Printed circuit board terminal, nominal current: 41 A, rated voltage (III/2): 1000 V, nominal cross section: 4 mm<sup>2</sup>, number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: TDPT 4/..-SC, pitch: 6.35 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Zigzag pinning W, Solder pin [P]: 3.5 mm, number of solder pins

Download 1017516 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1017516 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

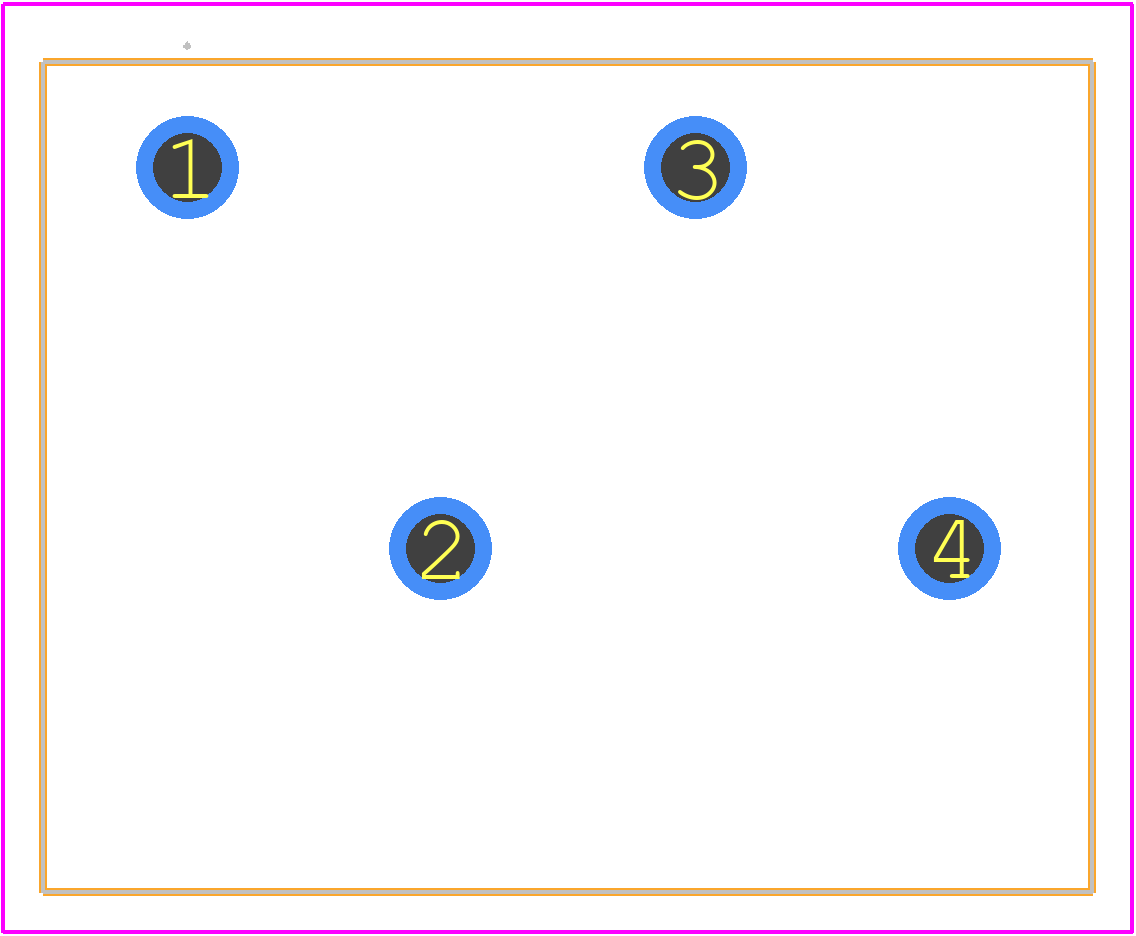

1017516 - Phoenix Contact PCB footprint - Other - Other - 1017516-2
click to zoom
3D Models
1017516 - Phoenix Contact - 3D model - Other - 1017516-2
click to zoom

1017516 Details

  • Manufacturer Part Number:

    1017516

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    SCREW

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    41 A

  • Rated Voltage:

    1000 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    4 mm2

  • Wire Gauge:

    10 AWG

1017516 Frequently Asked Questions (FAQs)

  • The operating temperature range for the 1017516 is -40°C to 125°C.
  • Yes, the 1017516 is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • The 1017516 is not certified for use in hazardous locations, such as explosive atmospheres. It is intended for general-purpose industrial applications.
  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
  • It is not recommended to use the 1017516 with aluminum wires, as they can cause corrosion and reduce the connector's lifespan. Copper or copper-alloy wires are recommended.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1017516 Overview

Use the download button to access the 1017516 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10175, or try a keyword search, such as Terminals and Terminal Blocks
