101A10099X - CONEC

Description: DIN 41612 Connectors 21P MALE 2.5MM R/A DIN41617

Download 101A10099X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

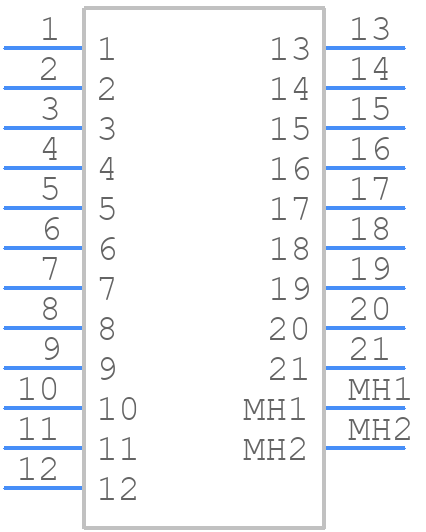

Symbol
101A10099X - CONEC - PCB symbol
click to zoom

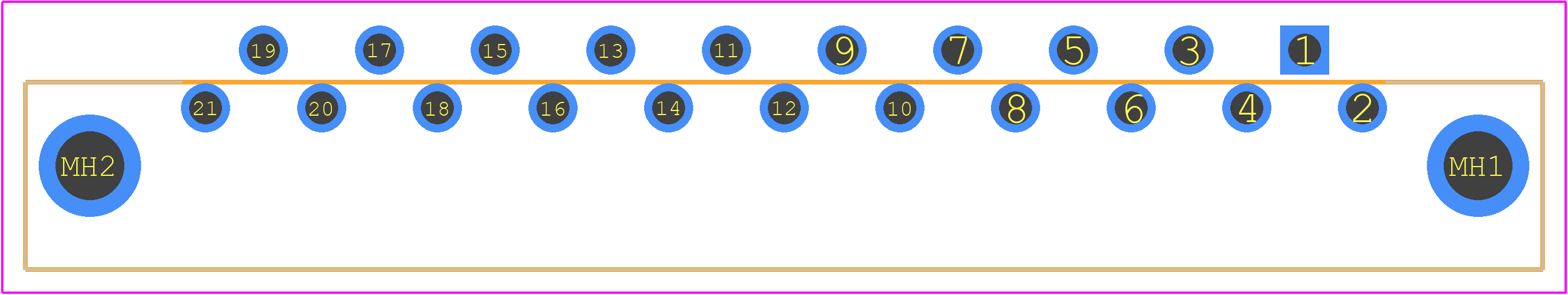

PCB Footprints
101A10099X - CONEC PCB footprint - Other - Other - 101A10099X-5
click to zoom
3D Models
101A10099X - CONEC - 3D model - Other - 101A10099X-5
click to zoom

101A10099X Details

  • Manufacturer Part Number:

    101A10099X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Conec Corporation

  • Connector Type:

    DIN CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    Gold (Au) over Nickel (Ni)

  • Contact Material:

    COPPER ALLOY

101A10099X Frequently Asked Questions (FAQs)

  • The operating temperature range of the 101A10099X connector is -40°C to 125°C.
  • Yes, the 101A10099X connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial automation.
  • The 101A10099X connector has a mating cycle life of 500 cycles, ensuring reliable connections even in demanding applications.
  • Yes, the 101A10099X connector is designed to be resistant to moisture, chemicals, and other environmental stressors, making it suitable for use in harsh environments.
  • The typical lead time for delivery of the 101A10099X connector is 6-8 weeks, depending on the quantity and availability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

101A10099X Overview

Use the download button to access the 101A10099X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 101A1, or try a keyword search, such as Headers and Edge Type Connectors
