101D-TAAB-R01 footprint, schematic symbol and 3D model by ATTEND

Symbol

click to zoom

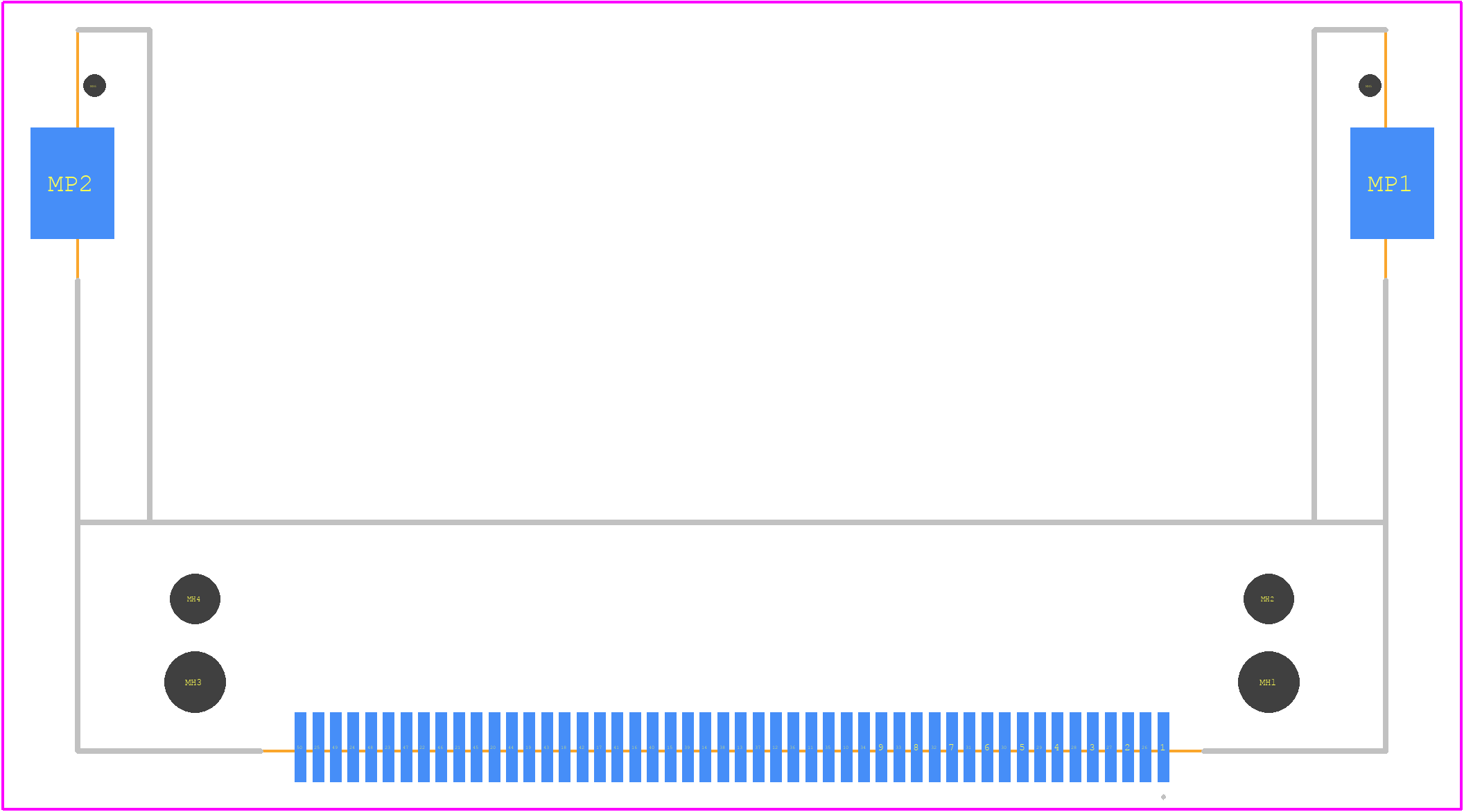

PCB Footprints

101D-TAAB-R01 - ATTEND PCB footprint - Other - Other - 101D-TAAB-R01-8

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 101D-TAAB-R01
Part Number 101D-TAAB-R01
Manufacturer ATTEND
Pin Count 52
Part Category Connector
Package Category Other
Footprint Name Other - 101D-TAAB-R01-8
Released Date Jul 14, 2021
Last Modified Date Nov 17, 2023 6:28 AM UTC
Pinout / Pin List Click Here (Member Only)

101D-TAAB-R01 Details

Manufacturer Part Number:
101D-TAAB-R01
Rohs Code:
Yes
Part Life Cycle Code:
Contact Manufacturer
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Attend Technology Inc
Body/Shell Style:
SOCKET
Connector Type:
PCB CONNECTOR
Contact Finish Termination:
Gold (Au) - with Nickel (Ni) barrier
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO
Mixed Contacts:
NO
Number Of Connectors:
ONE
Option:
GENERAL PURPOSE

101D-TAAB-R01 Frequently Asked Questions (FAQs)

The recommended operating temperature range for the 101D-TAAB-R01 is 0°C to 70°C (32°F to 158°F).
The 101D-TAAB-R01 can be configured using the Attend Technology Inc. configuration software, which allows users to select the desired communication protocol (e.g. Modbus, BACnet, etc.) and set up the device for use with specific systems.
The maximum cable length supported by the 101D-TAAB-R01 is 100 meters (328 feet) for RS-485 communication and 1000 meters (3280 feet) for Ethernet communication.
The 101D-TAAB-R01 is not designed for use in hazardous locations and should only be used in non-hazardous environments.
To troubleshoot communication issues with the 101D-TAAB-R01, check the device's power supply, ensure that the communication protocol is correctly configured, and verify that the cable connections are secure and not damaged.
