101D footprint, schematic symbol and 3D model by Hammond Manufacturing

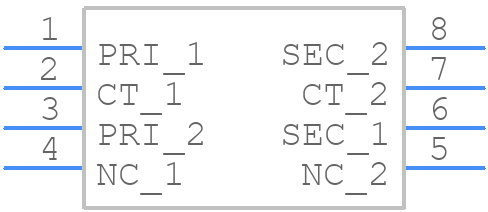

Symbol

PCB Footprints

3D Models

101D Details

The 101D can operate safely between -40°C to 85°C (-40°F to 185°F), but it's recommended to derate the power handling at higher temperatures.
Maintain a minimum clearance of 1 inch (2.54 cm) around the transformer, and ensure airflow is not blocked by other components or enclosures.
Yes, but it's essential to apply a conformal coating to protect the transformer from moisture. Hammond recommends a coating that meets the requirements of IPC-CC-830.
The recommended torque specification is 8-10 in-lbs (0.9-1.1 Nm) for the mounting screws. Over-tightening can damage the transformer.
The 101D meets the requirements of UL 1561, UL 508, and CSA C22.2 No. 66.1. It also complies with the European Union's RoHS and REACH directives.

Expert Contribution

System Verified

Community Approved

Use the download button to access the 101D schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search or try a keyword search, such as Audio Transformers
