The recommended torque value is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions. It's essential to consult the manufacturer's guidelines or contact their support team for specific recommendations.
Yes, the 101E10099X connector is designed to withstand vibrations up to 10g (according to IEC 60068-2-6) and is suitable for use in high-vibration environments, such as in industrial or transportation applications.
The 101E10099X connector has a nickel-plated brass shell and gold-plated contacts, which provide a certain level of resistance to corrosion. However, it's essential to consult the manufacturer's guidelines or contact their support team to determine the connector's compatibility with specific harsh chemical environments.
The 101E10099X connector is rated for operation in temperatures ranging from -40°C to 125°C, making it suitable for use in a wide range of applications, including industrial, automotive, and aerospace.
Yes, the 101E10099X connector is designed to operate in humid environments, with a rating of IP67 (according to IEC 60529) for protection against solid objects and water. However, it's essential to ensure proper sealing and installation to maintain the connector's integrity in high-humidity environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
101E10099X Overview

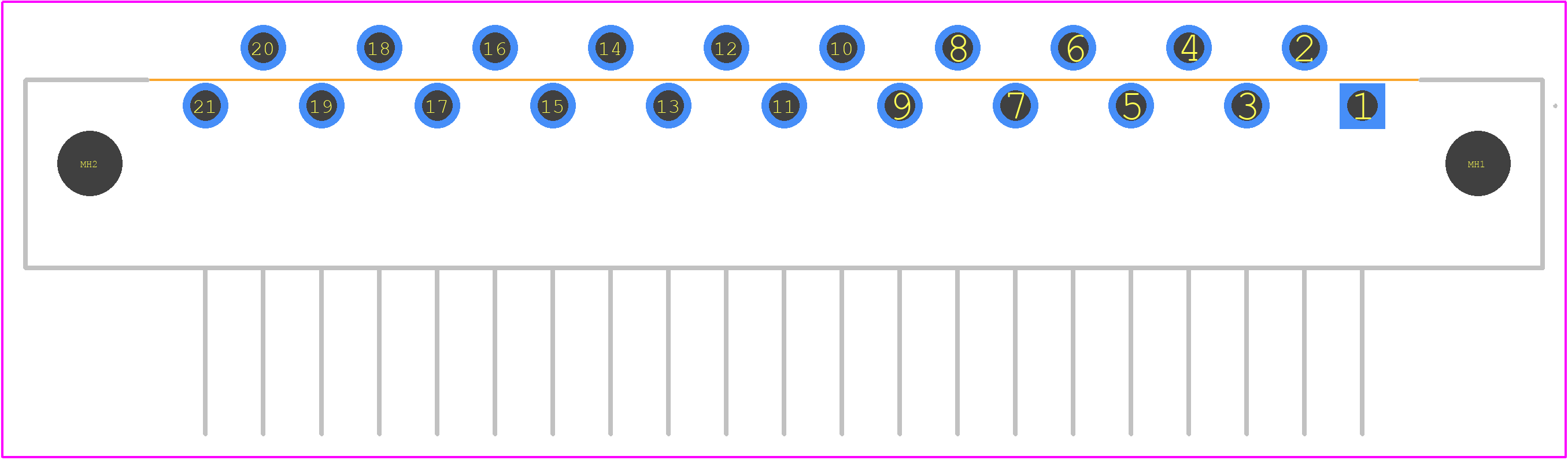

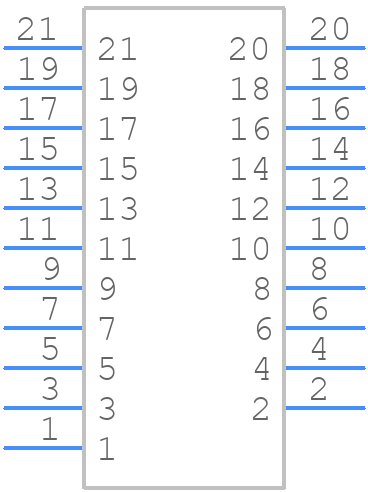

Use the download button to access the 101E10099X schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 101E1,
or try a keyword search, such as Headers and Edge Type Connectors
