10214-1210VE - 3M

Description: 14 Position Receptacle Connector Surface Mount, Right Angle Solder

Download 10214-1210VE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

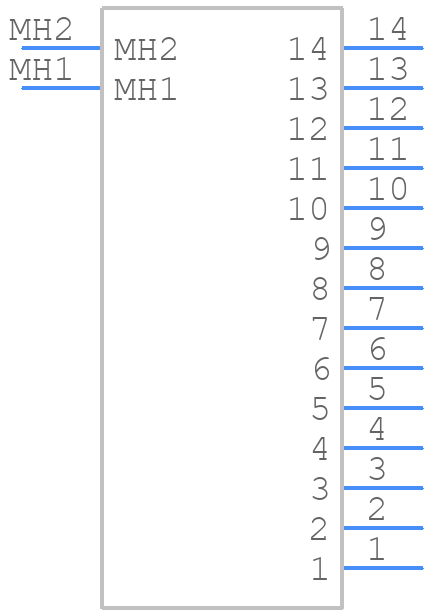

Symbol
10214-1210VE - 3M - PCB symbol
click to zoom

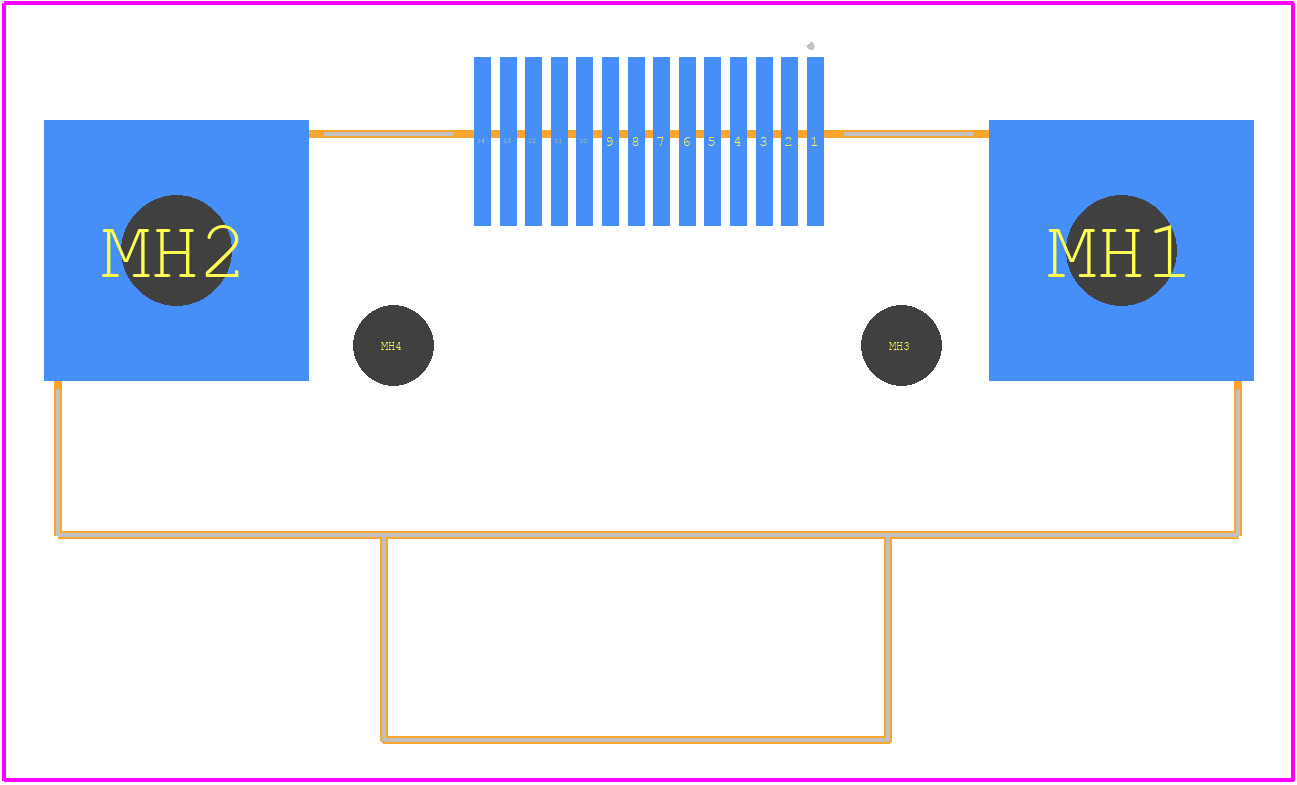

PCB Footprints
10214-1210VE - 3M PCB footprint - Other - Other - 10214-1210VE-2
click to zoom
3D Models
10214-1210VE - 3M - 3D model - Other - 10214-1210VE-2
click to zoom

10214-1210VE Details

  • Manufacturer Part Number:

    10214-1210VE

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    0

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    GOLD (20) OVER NICKEL (80)

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

10214-1210VE Overview

Use the download button to access the 10214-1210VE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10214, or try a keyword search, such as Telecom and Datacom Connectors
