10214-55G3PC - 3M

Description: 3M MDR 102 Series, 14 Way Right Angle Through Hole Mount Micro-D PCB Connector Socket, 1.27mm Pitch

Download 10214-55G3PC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
10214-55G3PC - 3M - PCB symbol
click to zoom
PCB Footprints

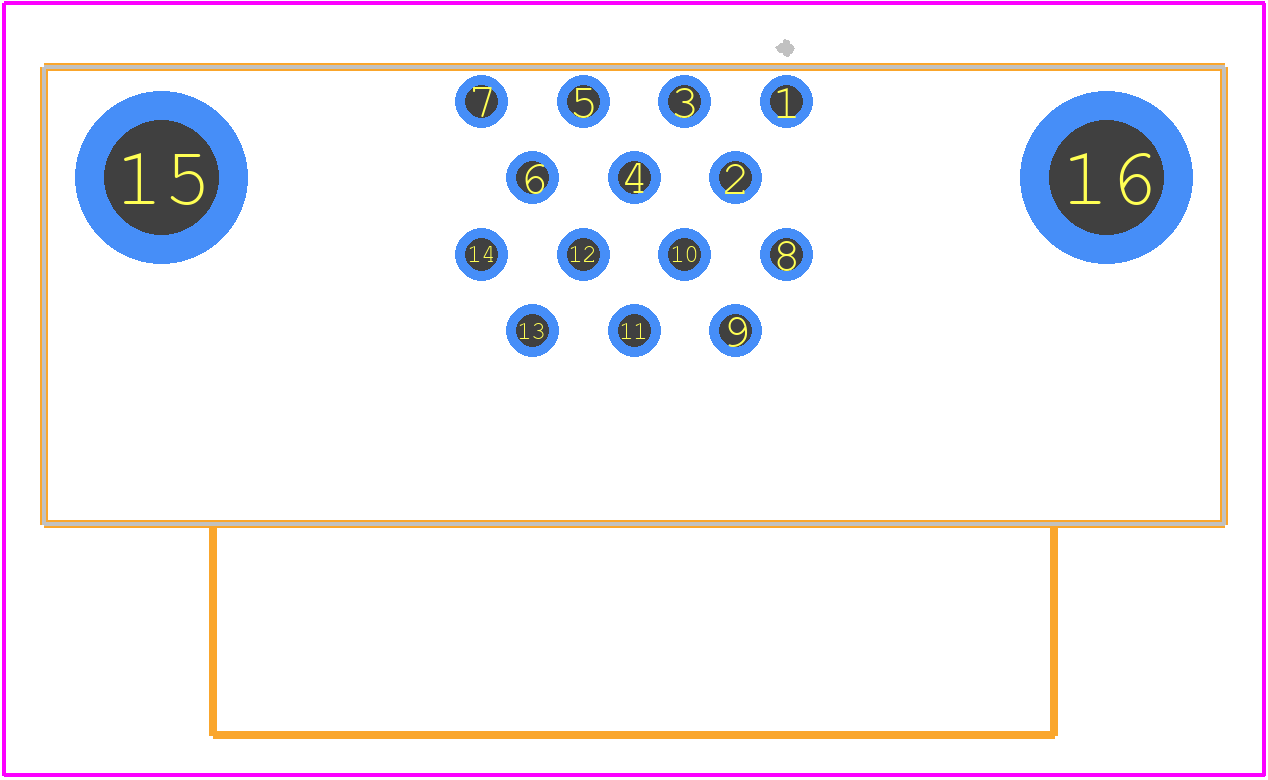

10214-55G3PC - 3M PCB footprint - Other - Other - 10214-55G3PC
click to zoom
3D Models
10214-55G3PC - 3M - 3D model - Other - 10214-55G3PC
click to zoom

10214-55G3PC Details

  • Manufacturer Part Number:

    10214-55G3PC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    6.8

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (100)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

10214-55G3PC Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks on the 10214-55G3PC connector.
  • Yes, the 10214-55G3PC connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial control systems.
  • The operating temperature range for the 10214-55G3PC connector is -55°C to 125°C (-67°F to 257°F).
  • Yes, the 10214-55G3PC connector is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The mating cycle life of the 10214-55G3PC connector is 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

10214-55G3PC Overview

Use the download button to access the 10214-55G3PC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10214, or try a keyword search, such as Telecom and Datacom Connectors
