10214-55G3PL footprint, schematic symbol and 3D model by 3M

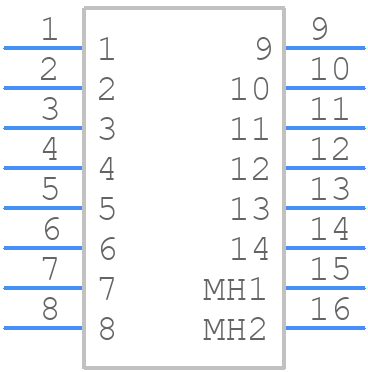

Symbol

click to zoom

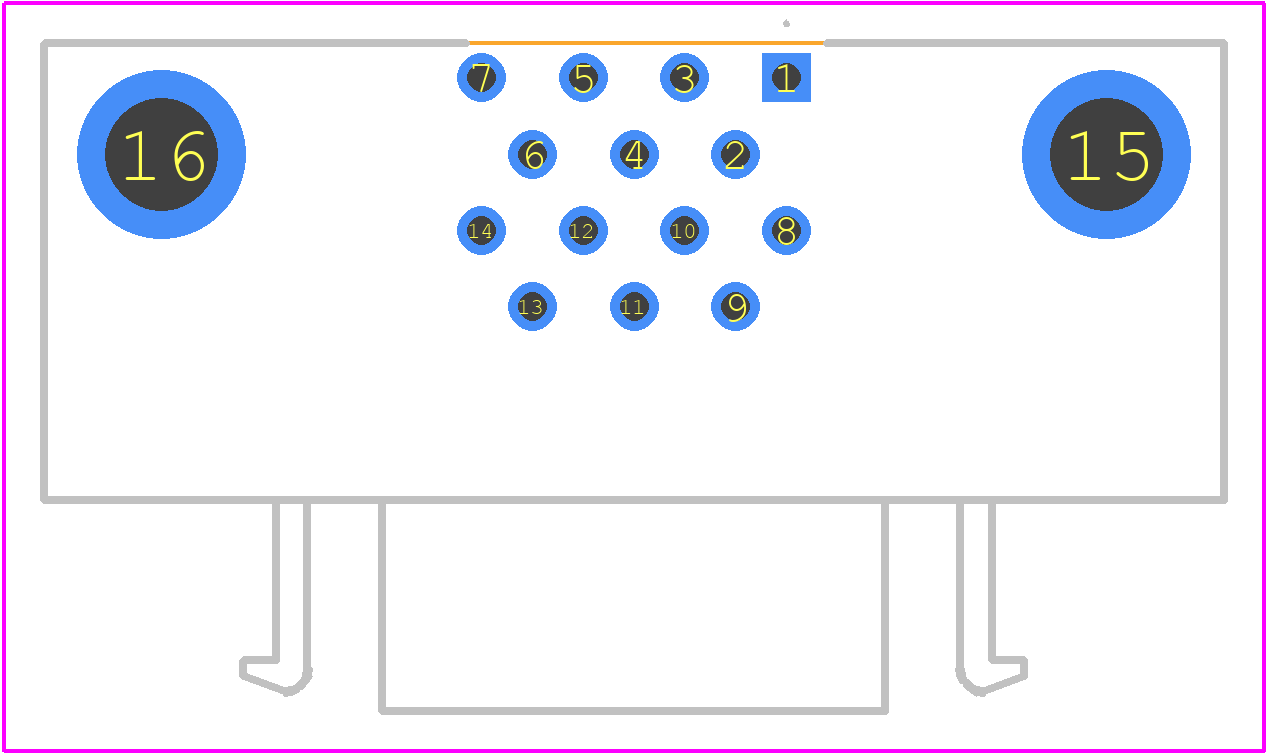

PCB Footprints

10214-55G3PL - 3M PCB footprint - Other - Other - 10214-55G3PL-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 10214-55G3PL
Part Number 10214-55G3PL
Manufacturer 3M
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - 10214-55G3PL-2
Released Date Jul 31, 2024
Last Modified Date Jul 31, 2024 7:24 AM UTC
Pinout / Pin List Click Here (Member Only)

10214-55G3PL Details

Manufacturer Part Number:
10214-55G3PL
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
19 Weeks
Manufacturer:
3M Interconnect
YTEOL:
6.8
Connector Type:
RIBBON D CONNECTOR
Contact Finish Mating:
GOLD (8) OVER NICKEL (50)
Contact Finish Termination:
Gold Flash (Au) - with Nickel (Ni) barrier
Contact Material:
COPPER ALLOY
DIN Conformance:
NO
IEC Conformance:
NO
MIL Conformance:
NO

10214-55G3PL Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 N·m (4-12 in-lbs).
Yes, the 10214-55G3PL is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10 G peak acceleration.
The operating temperature range for the 10214-55G3PL is -40°C to 125°C (-40°F to 257°F).
Yes, the 10214-55G3PL has a sealed construction and is designed to meet the requirements of IP67, making it suitable for use in harsh environments.
The mating cycle life of the 10214-55G3PL is 500 cycles minimum.

Trust Checks

Community Provided

System Verified

Community Approved

10214-55G3PL Overview

Use the download button to access the 10214-55G3PL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 10214, or try a keyword search, such as Telecom and Datacom Connectors
