The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the 10220-1S10PE is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
While the datasheet specifies AWG 20-24, the connector can accommodate wire sizes from AWG 18 to AWG 26, but the wire stripping length and insulation diameter may need to be adjusted accordingly.
The 10220-1S10PE is rated for operation in temperatures ranging from -40°C to 105°C (-40°F to 221°F).
The connector is designed to meet IP67 standards, making it suitable for use in humid or wet environments, but it's essential to ensure proper sealing and installation to maintain the IP67 rating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
10220-1S10PE Overview

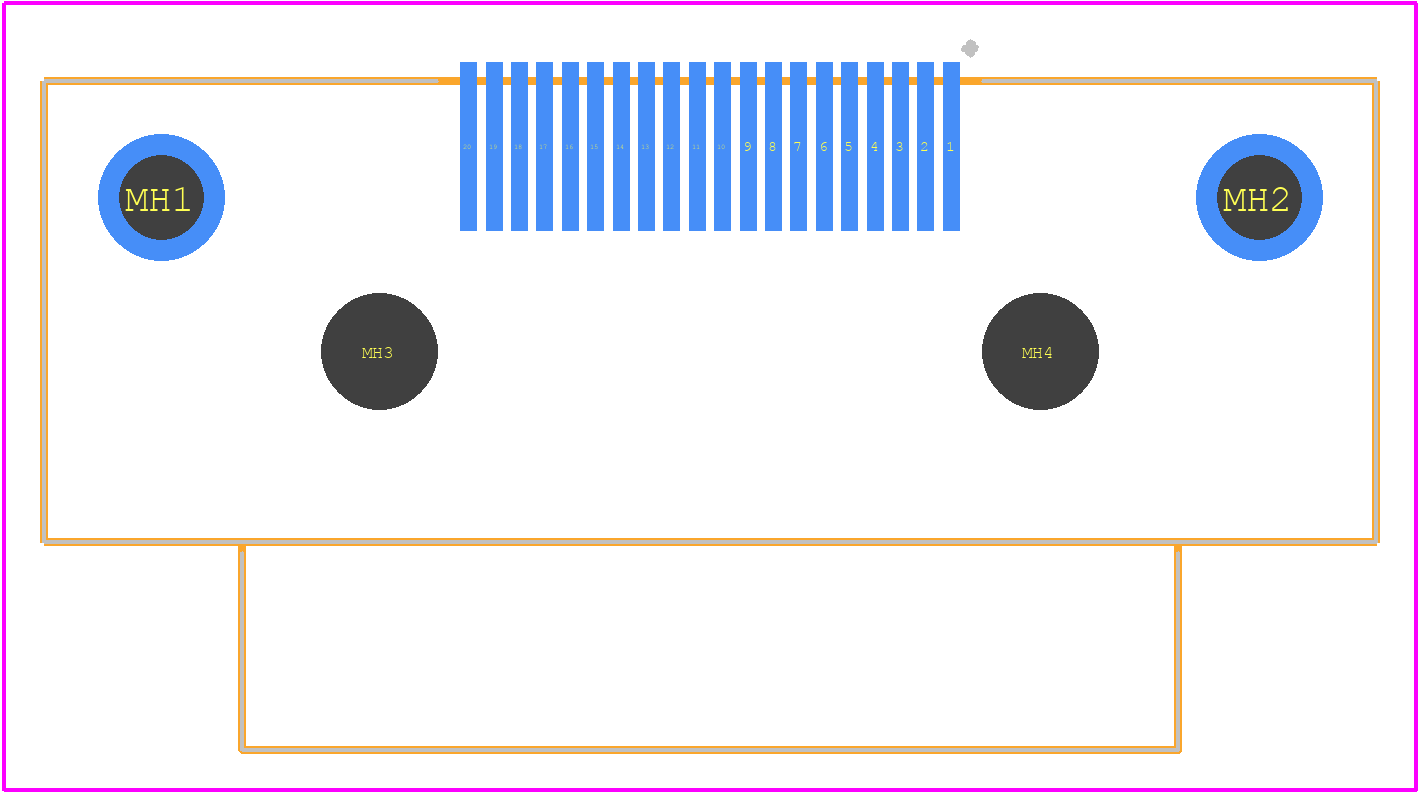

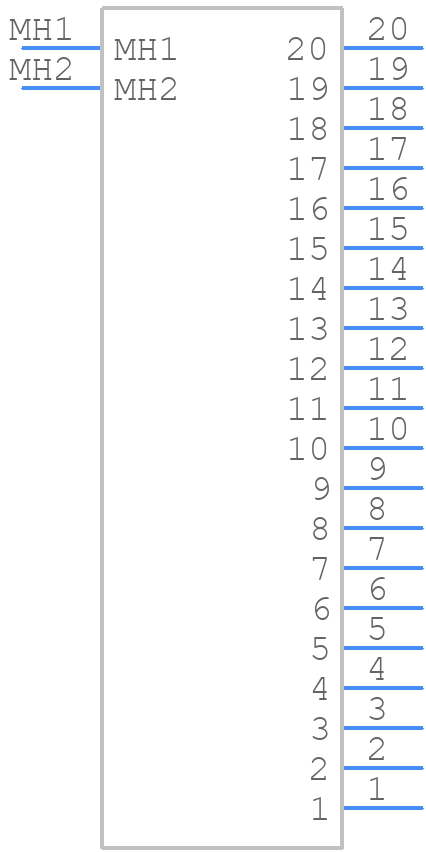

Use the download button to access the 10220-1S10PE schematic symbol and PCB footprint.
