10220-55G3PL - 3M

Description: 20 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder

Download 10220-55G3PL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

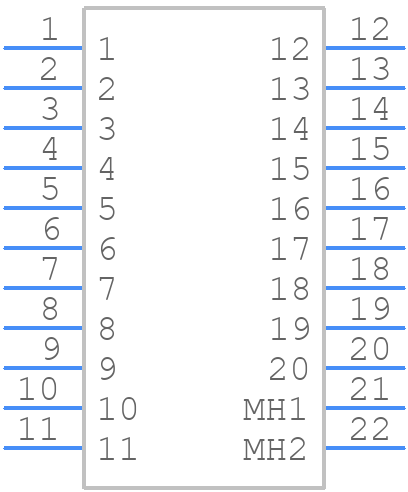

10220-55G3PL - 3M - PCB symbol
click to zoom
PCB Footprints

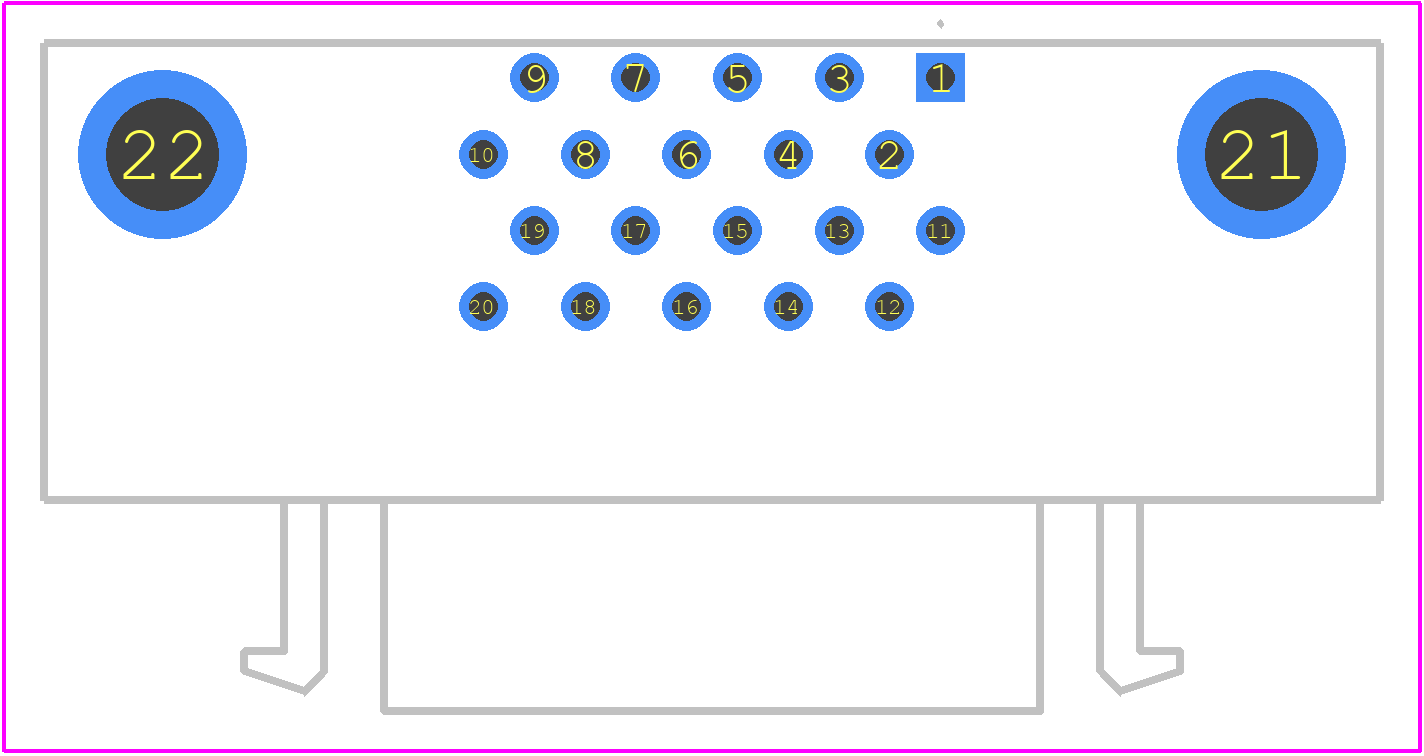

10220-55G3PL - 3M PCB footprint - Other - Other - 10220-55G3PL-2
click to zoom

10220-55G3PL Details

  • Manufacturer Part Number:

    10220-55G3PL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    6.8

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    GOLD (8) OVER NICKEL (50)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

10220-55G3PL Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks on the 10220-55G3PL connector.
  • Yes, the 10220-55G3PL connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, automotive, and industrial control systems.
  • The operating temperature range for the 10220-55G3PL connector is -55°C to 125°C (-65°F to 257°F).
  • Yes, the 10220-55G3PL connector is compatible with lead-free soldering processes, making it suitable for RoHS-compliant applications.
  • The mating cycle life of the 10220-55G3PL connector is 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

10220-55G3PL Overview

Use the download button to access the 10220-55G3PL schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 10220, or try a keyword search, such as Telecom and Datacom Connectors
